Forced Air Gas Burner Training Panel
Product Code : JA-ELA-5445

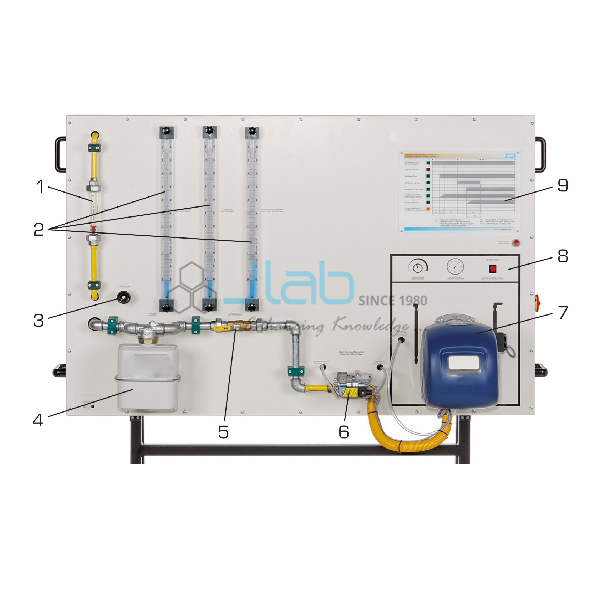

The Forced Air Gas Burner Training Panel (SKU JA-ELA-5445) is a training panel, supplied by JaincoLab, that simulates the operation of a forced-air gas burner using air instead of gas, so it can be used in an ordinary training room. A diaphragm pump generates the air pressure, the elements of the gas control system are combined in one compact fitting, and single-tube manometers show the main operating pressures. A flickering light indicates burner operation, which is monitored by a flame safeguard.
Specifications
The panel represents a burner in the 13 to 28 kW rating class, with the controller pressures and pump data listed below.
| Product | Forced Air Gas Burner Training Panel |
| SKU | JA-ELA-5445 |
| Simulation medium | Air, from a diaphragm pump |
| Gas burner rating class | 13 to 28 kW |
| Gas pressure controller | Admission 0.4 bar; outlet 0.04 bar |
| Diaphragm pump | 70 W; max. flow 70 L/min at 230 mbar |
| Pressure display | Single-tube manometers |
| Flame indication | Flickering light |
| Monitoring | Flame safeguard |
| Gas control | Elements combined in one compact fitting |
Training topics
- Operating sequence of a forced-air gas burner
- Reading operating pressures on the manometers
- Nominal load adjustment of the burner
- Function of the flame safeguard
Scope of supply and ordering
The listing covers the training panel with its diaphragm pump, fitting, manometers and flame safeguard; the stand or frame, quantity and lead time are confirmed on the quotation.
Frequently asked questions
Does the panel burn gas?
No. The burner function is simulated using air supplied by a diaphragm pump.
What burner rating does it represent?
The 13 to 28 kW gas burner rating class.
How are pressures shown?
On single-tube manometers.
