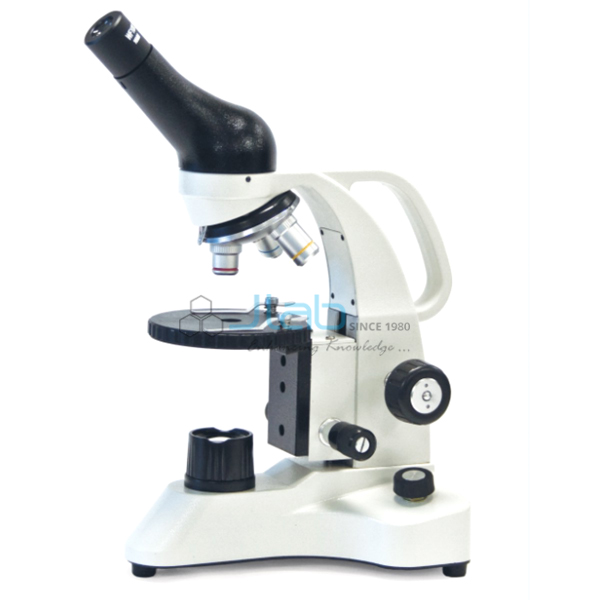

Cordless Compound Monocular Microscope
Product Code : JA-M-8056
The Cordless Compound Monocular Microscope (SKU JA-M-8056) is a student microscope supplied by JaincoLab with a cast aluminium body in grey enamel, a carrying handle on the arm and a rechargeable battery for use away from sockets. A WF10x eyepiece with pointer and achromatic 4x, 10x and retractable 40x objectives give 40x, 100x and 400x, with separate coarse and fine focusing and LED light with intensity control.
Specifications
The listing gives the optics, focusing, condenser, stage, light source, power and size shown below.
| Product | Cordless Compound Monocular Microscope |
| SKU | JA-M-8056 |
| Head | Monocular, inclined 45 degrees, rotates 360 degrees |
| Eyepiece | WF10x with pointer |
| Objectives | Achromatic 4x, 10x, 40xR (retractable); colour-coded, parcentred and parfocal |
| Magnification | 40x, 100x, 400x |
| Nosepiece | 3-hole reverse turret, ball-bearing mounted, click stops |
| Focusing | Separate coarse and fine controls |
| Condenser | Frosted glass, single lens |
| Stage | 90 mm round floating stage with stage clips |
| Light source | LED with intensity control |
| Power | Mains (listed as 110 V) or cordless rechargeable battery |
| Body | Cast aluminium, grey enamel finish; handle on the arm |
| Size and weight | 5.5 x 7 x 12.5 in; 4 lb |
| Packing | Fitted foam box with dust cover and instruction manual |
Uses of the cordless monocular microscope
- Slide observation in classrooms without bench sockets
- Moving between rooms, carried by the arm handle
- Cell, tissue and micro-organism slides at 100x and 400x
- Outdoor or field sessions on battery power
Scope of supply and ordering
Each microscope ships in a fitted foam box with a dust cover and an instruction manual. The charger voltage for the destination, quantities and delivery are confirmed on the quotation.
Frequently asked questions
Does this cordless microscope have fine focusing?
Yes. The listing gives separate coarse and fine focusing controls, and the achromatic objectives are parcentred and parfocal.
Which mains voltage is listed?
The source lists 110 V or cordless rechargeable battery operation. The charger for the mains supply at the destination is confirmed on the quotation.
What light and condenser does it use?
An LED with intensity control lights the specimen from below through a single-lens frosted glass condenser.
Related products
- Monocular Compound Microscope
- LED Corded/Cordless Beginner Monocular Microscope
- LED Corded/Cordless Dual View Microscope
- Student Compound Microscope
Compare it with other school models in the microscope range.
Request a quote
Request a quotation for the Cordless Compound Monocular Microscope by sending the quantity and delivery destination through the contact page. For tender or project supply, see our tenders page.
