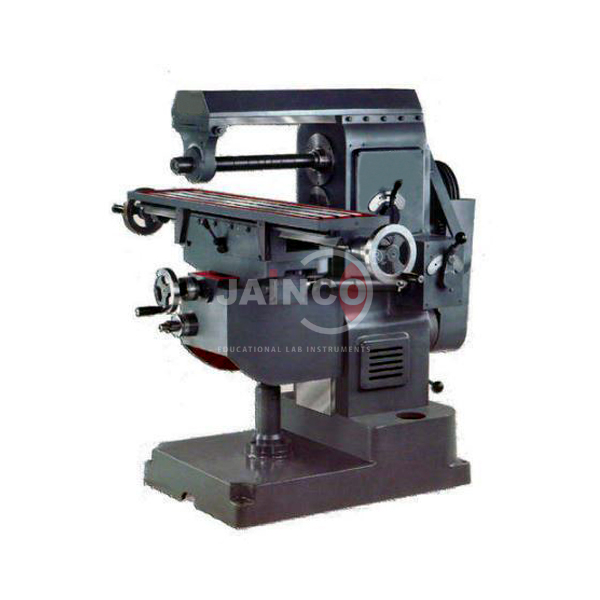

Universal Milling Machine
Product Code : JA-MMTM-8957
The universal milling machine has a 1150 x 255 mm table that swivels through 22 degrees, with 600 mm of longitudinal travel by hand or power feed, 200 mm cross feed and 400 mm vertical feed. The 25.4 mm arbor runs at four speeds from 110 to 580 rpm from a 2 HP main motor, and a coolant pump motor is fitted (SKU JA-MMTM-8957).
Specifications
Machine specification as listed:
| Product | Universal Milling Machine |
| SKU | JA-MMTM-8957 |
| Table working surface | 1150 x 255 mm |
| T-slots | 3, 57 mm apart |
| Table swivel | 22° |
| Spindle centre to table | 400 mm maximum |
| Longitudinal feed | 600 mm, hand and auto; 3 feed rates |
| Cross feed | 200 mm, by hand |
| Vertical feed | 400 mm, by hand |
| Spindle speeds | 4, from 110 to 580 rpm |
| Arbor diameter | 25.4 mm |
| Over-arm to spindle centre | 140 mm |
| Main motor | 2 HP, 1440 rpm |
| Coolant motor | 0.11 kW, 2700 rpm |
| Floor space | 600 x 900 mm |
| Height | 1400 mm |
| Weight | Approx. 950 kg |
Scope of supply and ordering
The listing covers one universal milling machine with its main and coolant motors, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
How far does the table swivel?
22 degrees.
What spindle speeds are available?
Four speeds from 110 to 580 rpm, from a 2 HP, 1440 rpm motor.
How much floor space does it need?
600 x 900 mm, with a machine height of 1400 mm and a weight of about 950 kg.
