Boring Bars with Holder
Product Code : JA-MMTM-8945

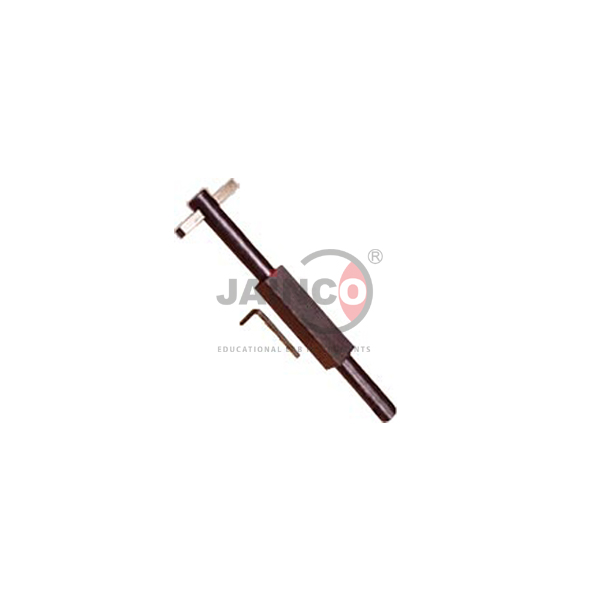

The boring bars with holder are double-ended one-piece bars with 90-degree and 45-degree square ends for tool bits, used for boring on the lathe. They are listed in seven sizes from 3/8 inch diameter x 4-1/2 inch long to 1-3/16 inch diameter x 13-3/4 inch long, supplied with Allen key and screw but without tool bits (SKU JA-MMTM-8945).
Specifications
Listed sizes:
| Product | Boring Bars with Holder |
| SKU | JA-MMTM-8945 |
| Type | Double-ended, one piece, 90° and 45° square ends |
| Bar sizes (dia x length) | 3/8 x 4-1/2; 7/16 x 5-1/4; 9/16 x 6-3/4; 3/4 x 9-1/4; 7/8 x 11-1/2; 1-1/8 x 12-3/4; 1-3/16 x 13-3/4 inch |
| Holder sizes (length x square) | 2-1/4 x 1/2 up to 5 x 1-5/8 inch |
| Square tool bit size | 1/8 to 1/2 inch |
| Supplied with | Allen key and screw; tool bits not included |
| Finish | Shiny black |
Scope of supply and ordering
The listing covers the boring bar and holder in the item size chosen, supplied by JaincoLab with Allen key and screw. Order quantity, packing and delivery time are set out on each quotation.
Frequently asked questions
Are tool bits included?
No, the bars are supplied with Allen key and screw but without tool bits.
What bit sizes do the bars take?
Square tool bits from 1/8 inch to 1/2 inch, depending on the bar size.
