Universal Dividing Head
Product Code : JA-MMTM-8959

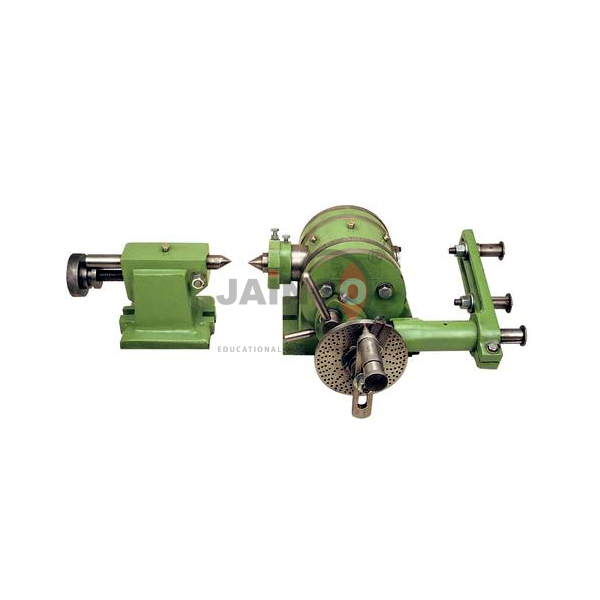

The universal dividing head indexes a workpiece on the milling machine, rotating it precisely to preset angles or circular divisions with an indexing plate. It has a 40:1 worm ratio, so 40 turns of the crank make one revolution of the spindle, and suits indirect and differential indexing; it is listed in 115, 140 and 165 mm centre heights (SKU JA-MMTM-8959).
Specifications
The three listed sizes:
| Product | Universal Dividing Head |
| SKU | JA-MMTM-8959 |
| Worm ratio | 1:40 |
| Indexing | Indexing plate; indirect and differential indexing |
| Centre height | 115 mm / 140 mm / 165 mm |
| Spindle bore | 20 mm / 32 mm / 38 mm |
| Maximum height | 210 mm / 260 mm / 310 mm |
| Base size (L x W) | 175 x 125 mm / 240 x 150 mm / 270 x 170 mm |
| Weight (approx.) | 65 kg / 90 kg / 125 kg |
Milling work with the dividing head
- Spiral and cam milling
- Machining the flutes of milling cutters
- Gear teeth cutting
- Milling curved slots
Scope of supply and ordering
The listing covers one dividing head in the centre height chosen, with its indexing plate, supplied by JaincoLab. Quantities, packing and delivery lead time are stated on each quotation.
Frequently asked questions
What is the worm ratio?
40:1, so 40 turns of the crank make one revolution of the spindle.
Which centre heights are listed?
115 mm, 140 mm and 165 mm, with spindle bores of 20, 32 and 38 mm.
Can it do differential indexing?
Yes, it is suitable for indirect as well as differential indexing.
