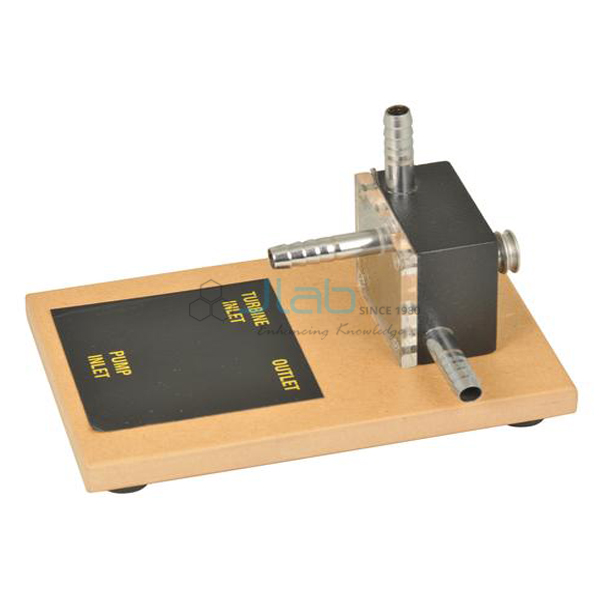

Turbine Pump Unit
Product Code : JA-ETE-7725
The JaincoLab turbine pump unit (SKU JA-ETE-7725) works in two directions: as a water turbine that drives a generator to produce electricity, or as a pump driven by an external motor. Its rotor has eight bucket blades inside a compact block chamber with a clear perspex front, so students can watch the water and the rotor. A 15 mm shaft pulley and a supplied driving belt link it to other units in school and college energy transfer set-ups.
Specifications
The rotor has eight bucket blades and runs in a 50 x 50 x 25 mm block turbine chamber with a clear perspex front. The shaft carries a 15 mm diameter pulley, and a driving belt is supplied. These values are taken from the product data.
| Product | Turbine Pump Unit |
| SKU / Product code | JA-ETE-7725 |
| Rotor | Eight bucket blades |
| Turbine chamber | Block, 50 x 50 x 25 mm |
| Front | Clear perspex |
| Shaft pulley | 15 mm diameter |
| Supplied with | Driving belt |
| Modes | Water turbine or motor-driven pump |
Applications of the turbine pump unit
Running the same unit as a turbine and then as a pump shows students that energy transfer can go both ways. It is used for:
- Driving a generator from flowing water to produce electricity
- Pumping water when driven by an external motor
- Hydroelectric demonstrations with the head of water unit
- Renewable energy and energy transfer lessons in secondary-school, college and TVET classes
Scope of supply and ordering
This listing covers the turbine pump unit, SKU JA-ETE-7725, with driving belt. Generators, motors and the head of water unit are separate listings. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for the quantity and delivery destination. Units are supplied singly or in energy transfer sets for school, college and tender orders.
Frequently asked questions
Can the unit work as both a turbine and a pump?
Yes. It is used as a water turbine to drive a generator, or as a pump driven by an external motor.
What size is the turbine chamber?
It is a 50 x 50 x 25 mm block with a clear perspex front, housing an eight-bucket rotor.
Is a belt included?
Yes. A driving belt is supplied, and the shaft carries a 15 mm pulley.
Related products
Hydroelectric and drive units used with it:
See the energy transfer equipment range or our physics lab equipment manufacturer in India hub.
Request a quote
Ask for a quotation on the turbine pump unit through the JaincoLab contact page. Tender and project enquiries can be sent through the tenders page.
