Shaft Line Unit
Product Code : JA-ETE-7714

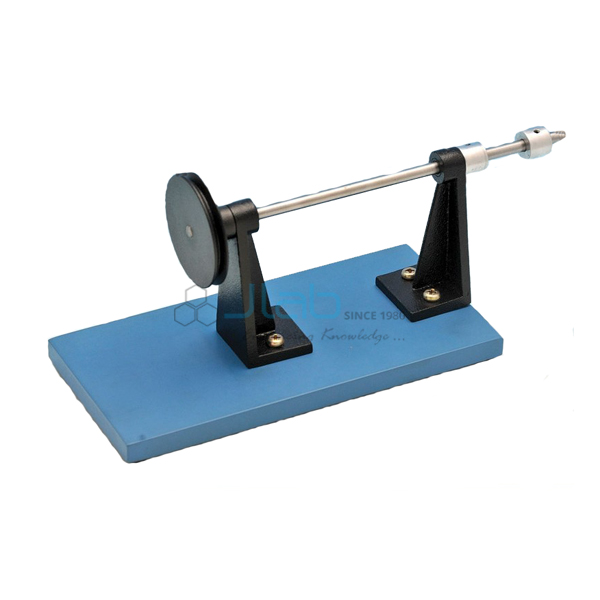

The JaincoLab shaft line unit (SKU JA-ETE-7714) transmits mechanical rotation from one unit of our energy transfer system to the next. A 6 mm steel shaft carries a 56 mm diameter aluminium 'V' pulley at one end and a coupling at the other, so it can take a belt drive from a motor or hand wheel and pass the rotation on to a neighbouring unit. It is used in school and college energy transfer set-ups.
Specifications
The unit is built on a 6 mm steel shaft. One end carries a 56 mm diameter aluminium 'V' pulley, and the other end is fitted with a coupling for linking to adjacent units. These values are taken from the product data.
| Product | Shaft Line Unit |
| SKU / Product code | JA-ETE-7714 |
| Shaft | Steel, 6 mm diameter |
| Pulley | Aluminium V pulley, 56 mm diameter, at one end |
| Coupling | At the other end, for linking adjacent units |
| Function | Transmits mechanical rotation between units |
Applications of the shaft line unit
Linking units with a shaft and belts lets students trace mechanical energy along a chain before it is converted. Typical uses:
- Transmitting rotation from the hand wheel drive or a motor to other units
- Coupling generators, flywheels and spring units into one energy chain
- Demonstrating pulley ratios with the 56 mm V pulley
- Mechanical energy transfer lessons in secondary-school and college physics
Scope of supply and ordering
This listing covers the shaft line unit, SKU JA-ETE-7714, with shaft, V pulley and coupling. Drive units, generators and belts are separate listings. Accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation for your quantity and delivery destination. Units are supplied singly or as part of complete energy transfer sets for school, college and tender orders.
Frequently asked questions
What are the main dimensions?
The steel shaft is 6 mm in diameter and carries a 56 mm diameter aluminium 'V' pulley.
How does it connect to other units?
A coupling on one end links it to adjacent units, and the V pulley on the other end takes a belt drive.
What is it used for?
To transmit mechanical rotation between separate units of the energy transfer system.
Related products
Units linked through the shaft line:
See the energy transfer equipment category or our physics lab equipment manufacturer in India hub.
Request a quote
For a price on the shaft line unit, write through the JaincoLab contact page. Buying under a laboratory tender? Use our tenders page.
