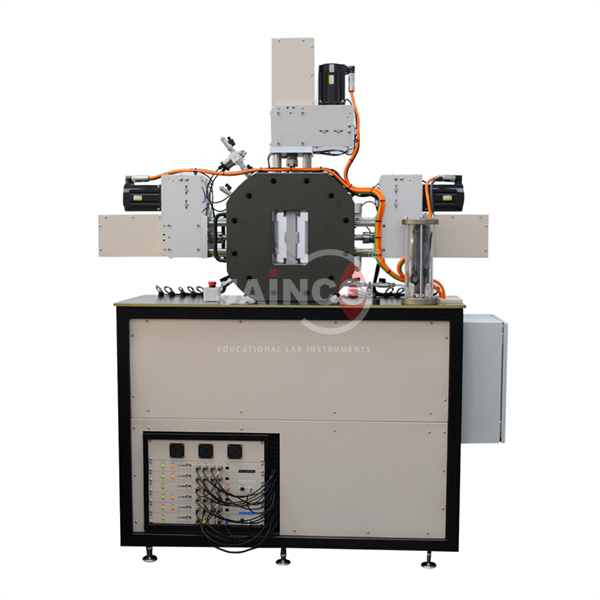

True Triaxial Apparatus
Product Code : JA-ST-9803
The True Triaxial Apparatus (SKU JA-ST-9803) controls all three principal stresses on a soil specimen independently, where a conventional triaxial apparatus controls only two. The vertical axis and one horizontal axis are loaded by dynamic actuators, electro-mechanical as standard or hydraulic as an option, while the third axis is controlled through cell pressure. This lets research laboratories run cyclic loading and complex stress paths. It is supplied by JaincoLab.
Specifications
The loading arrangement of the apparatus is:
| Product | True Triaxial Apparatus |
| SKU | JA-ST-9803 |
| Principal stress control | All three principal stresses controlled independently |
| Axis 1 (vertical) | Dynamic actuator |
| Axis 2 (horizontal) | Dynamic actuator |
| Axis 3 (horizontal) | Stress controlled via cell pressure |
| Actuators | Electro-mechanical; hydraulic actuators optional |
| Loading | Static and dynamic cyclic |
Applications of the true triaxial apparatus
- Research on soil strength and stiffness under three unequal principal stresses
- Complex stress path tests that a conventional triaxial cell cannot follow
- Cyclic loading studies with independent control of two axes
- Doctoral and postdoctoral research in advanced soil mechanics
Scope of supply and ordering
Specify electro-mechanical or hydraulic actuators; the listing covers the true triaxial apparatus with its dynamic actuators and cell pressure control. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
How does a true triaxial apparatus differ from a conventional one?
All three principal stresses are controlled independently, whereas a conventional triaxial system controls only two of them.
How is each axis loaded?
Axis 1 (vertical) and axis 2 (one horizontal axis) are loaded by dynamic actuators, and stress on axis 3 is controlled through cell pressure.
Which actuators are available?
Electro-mechanical actuators are standard, with hydraulic actuators as an option.
Related products
- Hollow Cylinder Apparatus
- Cyclic and Static Triaxial Apparatus
- Environmental Triaxial Range
- Triaxial Testing System
Other products in this group are in the soil testing equipment range.
Request a quote
Request a quotation for the True Triaxial Apparatus (SKU JA-ST-9803) through the JaincoLab contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
