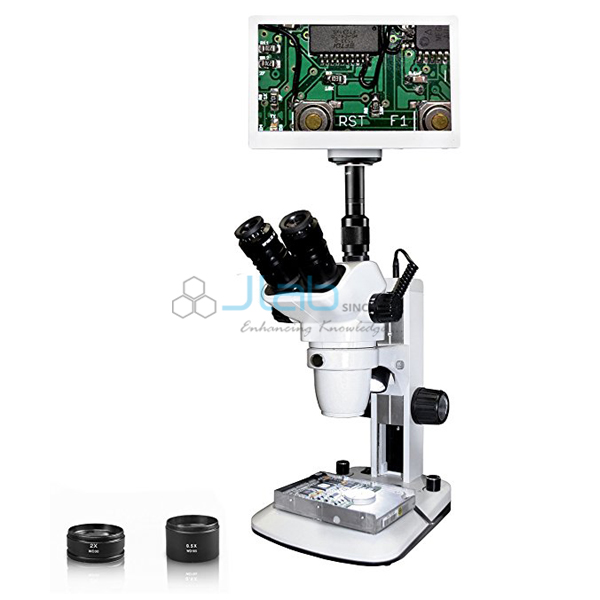

Trinocular Zoom Stereo Microscope 3.3x-90x Magnification
Product Code : JA-M-8132
The Trinocular Zoom Stereo Microscope 3.3x-90x Magnification (SKU JA-M-8132) is a stereo zoom microscope supplied by JaincoLab with a full HD camera specification for live display and recording. The zoom body gives 6.7x to 45x with WF10x/22 mm eyepieces, and 0.5x and 2x auxiliary lenses extend the range to 3.4x to 90x. Video at 1920 x 1080 and 60 frames per second goes out by HDMI and USB 2.0, and this trinocular zoom stereo microscope records to SD card.
Specifications
Listed: WF10x/22 mm high eyepoint eyepieces with +/-5 dioptre, a trinocular head with 50/50 split, 6.7x to 45x total magnification (3.4x to 90x with auxiliary lens), a 0.67x to 4.5x zoom at 1:6.7, a 105 mm working distance, and a 1080p camera and display specification.
| Product | Trinocular Zoom Stereo Microscope 3.3x-90x Magnification |
| SKU | JA-M-8132 |
| Magnification | 6.7x-45x; 3.4x-90x with auxiliary lens and optional eyepieces |
| Head | Trinocular, 50/50 split, 45 degrees, rotates 360 degrees; IPD 54-76 mm |
| Eyepieces | WF10x/22 mm pair, high eyepoint, +/-5 dioptre on both |
| Zoom body | 0.67x-4.5x, ratio 1:6.7, parfocal |
| Auxiliary lens | 0.5x (177 mm WD), 2x (26 mm WD) |
| Working distance | 105 mm standard; 26-177 mm with auxiliary lens |
| Camera and display | 1920 x 1080 at 60 fps; 5 MP stills; built-in SD card for image and video; HDMI and USB 2.0 outputs |
Applications of the trinocular zoom stereo microscope with HD camera
With HDMI output, the image can go straight to a classroom display or monitor while being recorded to SD card, so the microscope is used for teaching demonstrations, electronics inspection and documenting specimens in research laboratories.
- Live classroom display over HDMI
- Recording video and images to SD card
- Circuit board and component inspection
- Entomology and botany specimens
- Materials and surface inspection
Scope of supply and ordering
One unit is one trinocular zoom stereo microscope with the listed eyepieces and zoom body; the camera and display, auxiliary lenses, stand, lighting and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the quantity ordered and the delivery destination. JaincoLab supplies single-school orders as well as bulk requirements for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the maximum magnification?
90x with the 2x auxiliary lens; the standard range is 6.7x to 45x.
What does the camera output?
1920 x 1080 video at 60 frames per second and 5 MP still images, to a built-in SD card and via HDMI and USB 2.0.
Why does the name say 3.3x when the listing says 3.4x?
The specification gives 3.4x as the lowest magnification with the 0.5x auxiliary lens; the name is kept as listed.
