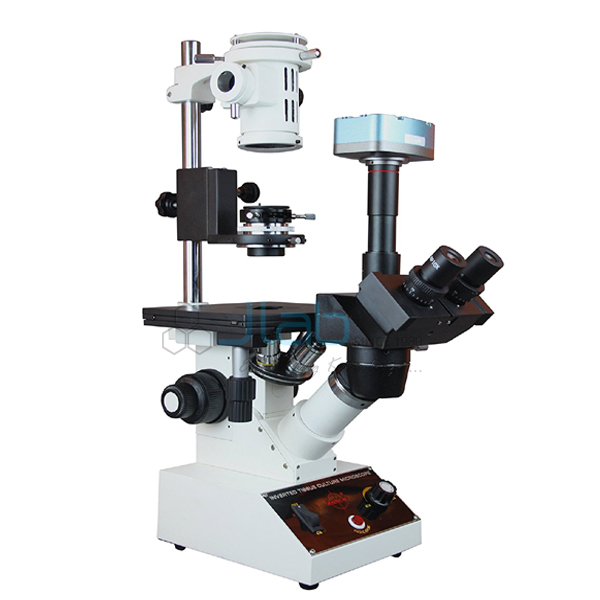

Trinocular Inverted Tissue Culture Microscope
Product Code : JA-M-958
The Trinocular Inverted Tissue Culture Microscope (SKU JA-M-958) is used to look at cell and tissue cultures inside flasks, bottles and dishes, with long working distance objectives and a trinocular head for photomicrography. The 45-degree head can be exchanged for a binocular head, and a P7x photo eyepiece is listed with the HWF 10x pair. Biotechnology, microbiology and cell biology laboratories in colleges and research institutes use this trinocular inverted tissue culture microscope for culture checks and teaching.
Specifications
The listed specification covers a 45-degree trinocular head, a quadruple turret nosepiece, a large double plate coaxial mechanical stage, post-mounted 6 V 20 W halogen illumination on the Koehler principle, four achromatic objectives including two long working distance lenses, and HWF 10x plus P7x eyepieces.
| Product | Trinocular Inverted Tissue Culture Microscope |
| SKU | JA-M-958 |
| Head | Trinocular, 45-degree inclined; interchangeable with binocular head |
| Nosepiece | Quadruple revolving turret, positive click stops |
| Stage | Large double plate coaxial mechanical stage |
| Illumination | Koehler system, post-mounted 6 V 20 W halogen illuminator |
| Objectives | Achromatic 5x, 10x, LWD 20x, LWD 40x SL |
| Eyepieces | HWF 10x pair with eye guards; P7x for photomicrography |
Applications of the trinocular inverted tissue culture microscope
The microscope suits any laboratory that must examine cultures in their vessels: the long working distance objectives view cells through the base of a flask or dish, and the third port lets a camera record what students and researchers see at the eyepieces.
- Checking cell and tissue cultures in flasks and dishes
- Photomicrography of cultures through the trinocular port
- Biotechnology and microbiology teaching laboratories
- Cell biology practicals in B.Sc and M.Sc courses
- Research training in college laboratories
Scope of supply and ordering
One unit is one trinocular inverted tissue culture microscope with the listed head, stage, halogen illuminator, four objectives and eyepieces. A camera, camera adapter, accessories, spares and quantities are confirmed on the quotation.
Packing, minimum order quantity and lead time depend on the order size and the delivery destination, and each is confirmed on the quotation. Bulk orders for school and college laboratories and tender supplies are handled, including export shipments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Can a camera be attached?
Yes. The trinocular head has a photo port and a P7x photomicrography eyepiece is listed; the camera and adapter are confirmed on the quotation.
Which objectives are fitted?
Achromatic 5x and 10x, plus long working distance 20x and 40x SL objectives.
Can the head be changed?
The 45-degree trinocular head is listed as interchangeable with a binocular head.
Related products
- Inverted Tissue Culture Microscope
- Advanced Inverted Tissue Culture Microscope
- Tissue Culture Microscope
- Inverted Phase Contrast Microscope
Other student, laboratory and research models are listed in the microscopes range.
Request a quote
For a price on the Trinocular Inverted Tissue Culture Microscope (JA-M-958), share the quantity required and the delivery destination through the JaincoLab contact page. Buying under a laboratory tender? Use our tenders page.
