Swell Test Apparatus
Product Code : JA-ST-9838

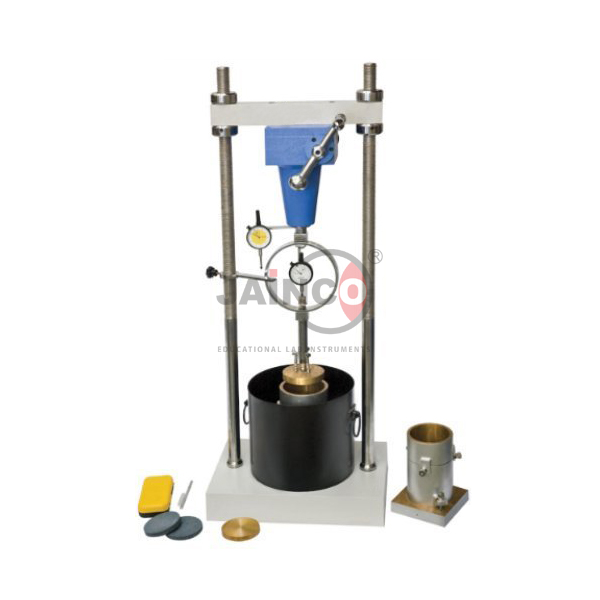

The Swell Test Apparatus (SKU JA-ST-9838) determines the swelling pressure that a soil specimen develops when it is soaked in water after being moulded to a chosen density at a known moisture content. The load needed to stop the specimen swelling passes through a perforated swell plate and a load transfer bar to a proving ring on the lead screw of a hand-operated load frame. A soaking tank and a grooved mould base let water reach the specimen.
Specifications
The apparatus is made up of these parts:
| Product | Swell Test Apparatus |
| SKU | JA-ST-9838 |
| Property measured | Swelling pressure of soil specimens at known density and moisture content |
| Load path | Perforated swell plate and load transfer bar to a load measuring proving ring |
| Loading mechanism | Hand operated load frame with lead screw |
| Saturation | Soaking tank; mould base with channels, radial grooves and connecting holes |
Applications of the swell test apparatus
- Swelling pressure of expansive clays for foundation and floor slab design
- Comparing swell of the same soil compacted to different densities and moisture contents
- Soil mechanics practicals on expansive soils
Scope of supply and ordering
The listing covers the load frame, proving ring, swell plate, load transfer bar, mould and soaking tank; state the proving ring capacity needed. The number of units, the packing and the dispatch time are confirmed on the quotation.
Frequently asked questions
How is the swelling pressure measured?
The load applied to restrain swelling is carried through a perforated swell plate and a load transfer bar to a proving ring attached to the lead screw of a hand-operated load frame.
How is the specimen saturated?
It is soaked in the soaking tank, and the channels, radial grooves and connecting holes in the mould base let water reach the specimen.
How are specimens prepared?
Specimens are moulded to the desired density at a known moisture content before soaking.
