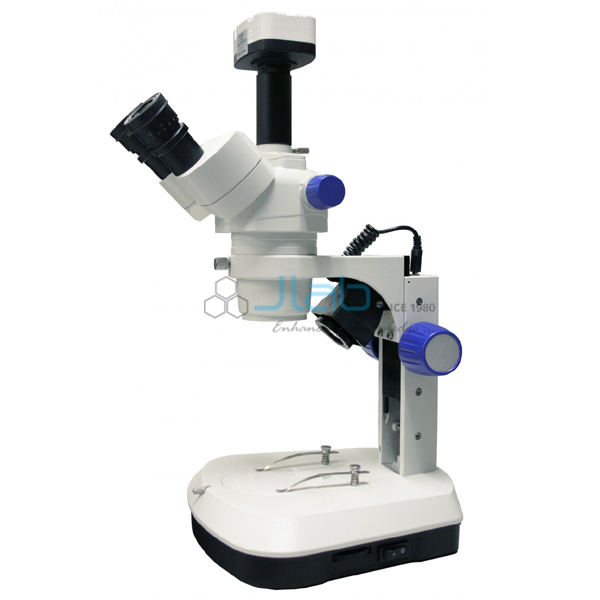

Super Widefield Digital Trinocular Zoom Stereo Microscope
Product Code : JA-M-8127
The Super Widefield Digital Trinocular Zoom Stereo Microscope (SKU JA-M-8127) combines a 0.66x to 5x zoom with WF10x/23 mm wide-field eyepieces for 6.6x to 50x, extendable to 3.3x to 200x with optional lenses and eyepieces. A trinocular head with a 20/80 light split carries a digital camera for imaging, and the working distance is 110 mm. Supplied by JaincoLab, this trinocular zoom stereo microscope serves research, teaching and inspection laboratories.
Specifications
Listed: 6.6x to 50x standard (3.3x to 200x with optional lenses), a trinocular head with 20/80 split at 45 degrees rotating 360 degrees, 54 to 76 mm interpupillary distance, WF10x/23 mm eyepieces with +/-5 dioptre, a 1:7.6 zoom, 110 mm working distance, 140 mm focus range and 99.5 mm stage plates.
| Product | Super Widefield Digital Trinocular Zoom Stereo Microscope |
| SKU | JA-M-8127 |
| Magnification | 6.6x-50x standard; 3.3x-200x with auxiliary objectives and optional eyepieces |
| Head | Trinocular, 20/80 light split, 45 degrees, rotates 360 degrees; IPD 54-76 mm |
| Eyepieces | WF10x/23 mm pair, high eyepoint, +/-5 dioptre on both, eyeshades, lockable |
| Zoom body | 0.66x-5x, zoom ratio 1:7.6, parfocal; dual graduated zoom knobs |
| Working distance | 110 mm standard; 36-189 mm with auxiliary objectives |
| Focusing | Rack and pinion with slip clutch, tension adjustment, 140 mm range |
| Stage | 99.5 mm glass plate and 99.5 mm reversible black and white plate |
| Illumination | Top incident and bottom transmitted LED, each dimmable |
Applications of the trinocular zoom stereo microscope
The continuous zoom and long working distance suit work that moves between whole-specimen views and close detail, and the camera port records images for reports, so it is used in biology research, electronics inspection and teaching laboratories.
- Biological specimens and dissections
- Electronics and semiconductor inspection
- Photomicrography through the camera port
- Entomology and botany research
- Materials and fracture surface study
Scope of supply and ordering
One unit is one trinocular zoom stereo microscope with the listed head, WF10x/23 mm eyepieces, zoom body, stand, stage plates and LED lighting. The camera, software, auxiliary objectives, WF20x or reticle eyepieces, travelling stage and quantities are confirmed on the quotation.
Each quotation states the minimum order quantity, the lead time and the packing for the quantity requested and the destination. JaincoLab handles bulk school and college orders and tender supplies, and ships to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What magnification range does it cover?
6.6x to 50x as standard, and 3.3x to 200x with auxiliary objectives and optional eyepieces.
Is a camera included?
The trinocular head takes a digital camera; the camera and software supplied are confirmed on the quotation.
What is the working distance?
110 mm as standard, adjustable from 36 mm to 189 mm with the optional auxiliary objectives.
