Study of Operational Amplifier as Voltage and Current Feed Back Amplifier
Product Code : JA-COA-1146

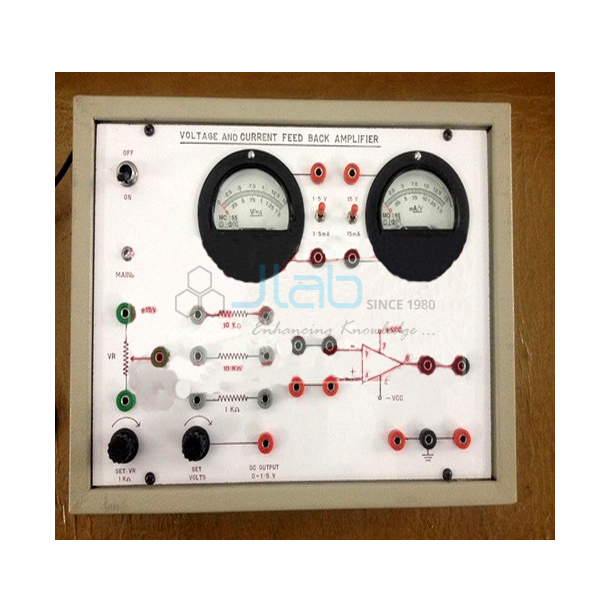

The Study of Operational Amplifier as Voltage and Current Feed Back Amplifier apparatus (SKU JA-COA-1146) is used to compare an op-amp amplifier with voltage feedback and with current feedback. An IC 741 and a combination of resistances are connected inside the unit, with the connections brought out to sockets on the front panel. A +15 V DC regulated supply and two dual-range round meters are built in.
Specifications
The listing gives these details:
| Product | Study of Operational Amplifier as Voltage and Current Feed Back Amplifier |
| SKU | JA-COA-1146 |
| Circuits | Voltage feedback and current feedback amplifier |
| IC | 741, connected internally with resistances |
| Power supply | +15 V DC regulated |
| Meters | Two dual-range round meters |
| Connections | Sockets on the front panel |
Scope of supply and ordering
One unit per order line with its supply and two meters. Quantities and packing are confirmed on the quotation.
Frequently asked questions
Which feedback types are studied?
Voltage feedback and current feedback, both with an IC 741.
What meters are built in?
Two dual-range round meters, with a +15 V DC regulated supply.
