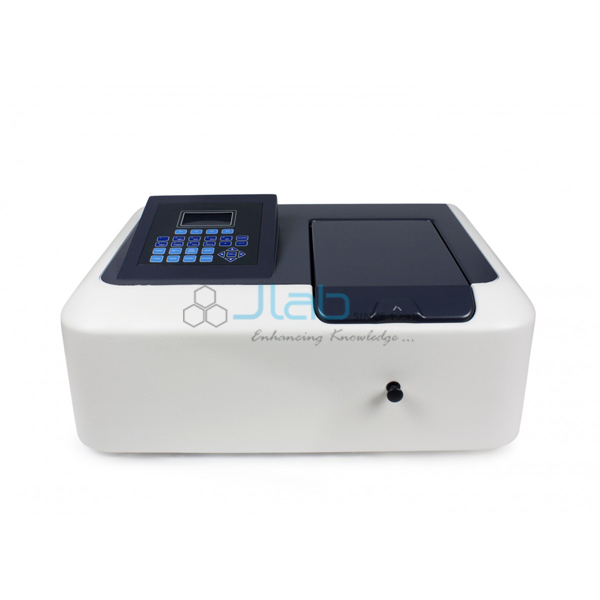

Single Beam Spectrophotometer Wavelength Range 325-1100nm
Product Code : JA-LE-8256
The Single Beam Spectrophotometer Wavelength Range 325-1100nm (SKU JA-LE-8256) is a single beam spectrophotometer 325-1100 nm for college, university and general laboratory work. A four-position holder takes 10 mm cells, and the large compartment accepts cells with path lengths from 5 to 100 mm. Its functions include basic photometric mode, quantitative analysis and multi-wavelength tests. It is supplied by JaincoLab.
Specifications
Optical and photometric values listed:
| Product | Single Beam Spectrophotometer Wavelength Range 325-1100nm |
| SKU | JA-LE-8256 |
| Wavelength range | 325 to 1100 nm |
| Spectral bandwidth | 4 nm |
| Optical system | Single beam, Littrow, 1200 lines/mm; silicon photodiode |
| Wavelength accuracy / repeatability | +/-1.0 nm / 0.5 nm or better |
| Photometric range | 0-200 %T; -0.3 to 3 A; -9999 to 9999 concentration |
| Photometric accuracy | +/-0.003 A (0.5-1 A); +/-0.5 %T |
| Photometric repeatability | 0.002 A or better (0.5-1 A); 0.2 %T or better |
| Stray light | 0.10 %T or less at 360 nm |
| Stability / baseline flatness | +/-0.001 A/h (500 nm, 0 A) / +/-0.002 A (PC control) |
| Scan speed | Up to 2000 nm/min (PC control) |
| Lamp | Tungsten, pre-aligned |
| Output | USB |
| Size / weight | 18 x 14 x 8 in / 32 lb |
Scope of supply and ordering
The instrument ships with its four-position 10 mm cell holder; PC software is optional, so mention it with the quantity, and the quotation confirms packing and lead time.
Frequently asked questions
What path-length cells fit the sample compartment?
Cells from 5 mm up to 100 mm path length; a four-position holder for 10 mm cells is fitted.
Can it scan a spectrum?
Yes, under PC control it scans at up to 2000 nm per minute; the PC software is optional.
Which lamp does it use?
A pre-aligned tungsten lamp that is placed for easy replacement.
