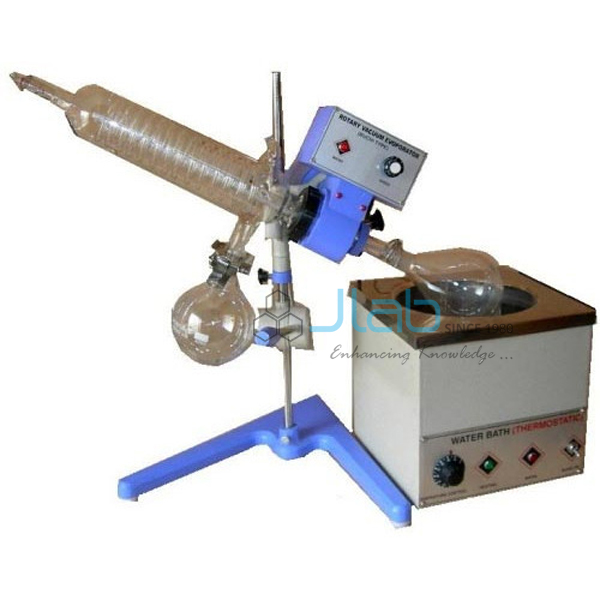

Rotary Vacuum Evaporator
Product Code : JA-WDP-3928
The Rotary Vacuum Evaporator (SKU JA-WDP-3928) removes solvents from samples by distillation under reduced pressure, with the evaporating flask turned by a heavy duty motor in a heated water bath. This rotary vacuum evaporator has a pear-shaped flask for a large evaporating surface, a speed regulator and digital RPM meter, a digital water bath and a motorised lift that raises or lowers the flask at the touch of a button. JaincoLab manufactures it for chemistry, pharmacy and natural-product research laboratories.
Specifications
The flask is clamped to a glass duct that passes through the drive unit and projects about 120 mm into the condenser, which has standard joints at the top and at the bottom for the receiver flask.
| Product | Rotary Vacuum Evaporator |
| SKU | JA-WDP-3928 |
| Drive | Heavy duty motor with speed regulator |
| Speed display | Digital RPM meter |
| Evaporating flask | Pear shaped |
| Vapour duct | Glass duct through the drive unit, projecting about 120 mm into the condenser |
| Condenser | Standard joint at top, and at bottom for receiver flask |
| Heating bath | Digital water bath |
| Lift | Motorised auto lift, up or down at the touch of a button |
Applications of the rotary vacuum evaporator
Rotating the flask spreads the liquid as a thin film and, with vacuum lowering the boiling point, removes solvent quickly at gentle temperatures.
- Concentrating plant and natural-product extracts in pharmacognosy laboratories
- Removing solvents after extraction or synthesis in chemistry laboratories
- Solvent recovery in pharmaceutical research and development
- M.Pharm and M.Sc research projects
Scope of supply and ordering
The listing covers the rotary evaporator with motor drive, speed regulator, digital RPM meter, glassware, condenser, digital water bath and motorised lift. The vacuum pump, chiller and flask sizes are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the flask sizes, vacuum pump needs and number of units and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
Is a water bath included?
Yes. It is supplied complete with a digital water bath.
How is the flask raised and lowered?
By a motorised auto lift that moves up or down at the touch of a button.
Is a vacuum pump included?
The vacuum pump and any chiller are confirmed on the quotation.
Related products
- Distillation Apparatus All Glass
- Quartz Distillation Apparatus
- Vacuum Oven
- Water Still Table Pattern (Barnstead Type)
This model is listed in the JaincoLab water distillation plant range.
Request a quote
To order the Rotary Vacuum Evaporator, send flask sizes, vacuum pump needs, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-WDP-3928. For tender or project supply, see our tenders page.
