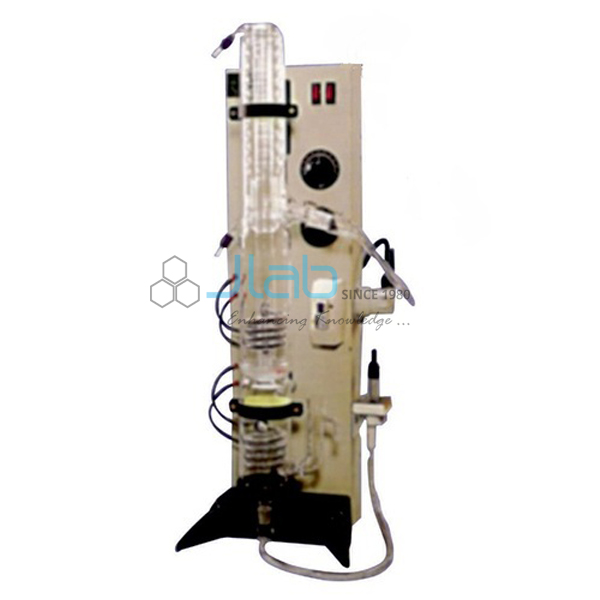

Quartz Distillation Apparatus
Product Code : JA-WDP-3921
The Quartz Distillation Apparatus (SKU JA-WDP-3921) is a single distillation unit in which the water touches only transparent quartz, used where distilled water should not contact metal or ordinary glass. This quartz distillation apparatus has a bottom boiler and a top boiler with condenser that separate for cleaning, a bottom vent for draining, and electrical heaters embedded inside quartz tubes so they never touch the water. JaincoLab manufactures it for analytical, research and pharmaceutical laboratories.
Specifications
All water-contact parts are high-purity transparent quartz with SiO2 content above 99.9%, the heaters are embedded inside quartz tubes, and the bottom boiler and top boiler with condenser are demountable.
| Product | Quartz Distillation Apparatus |
| SKU | JA-WDP-3921 |
| Type | Single distillation |
| Contact material | Transparent quartz, SiO2 above 99.9% |
| Boilers | Bottom boiler and top boiler with condenser, demountable for cleaning |
| Drain | Bottom vent in the bottom boiler |
| Heaters | Embedded inside quartz tubes, no contact with water |
Applications of the quartz distillation apparatus
Because quartz resists water and most acids, it is preferred for stills that supply water for trace-level analytical work.
- Distilled water for trace-metal and instrumental analysis
- Reagent water for analytical chemistry and research laboratories
- Pharmaceutical quality-control laboratory water
- Laboratories that need water which has contacted only quartz
Scope of supply and ordering
The listing covers the quartz single distillation apparatus with bottom and top boilers, condenser, bottom vent and quartz-sheathed heaters. Output per hour, heater rating, supply voltage and stand are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the output capacity and number of units and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
Which parts touch the water?
Only transparent quartz with SiO2 content above 99.9%; the heaters are sealed inside quartz tubes.
Can it be taken apart for cleaning?
Yes. The bottom boiler and the top boiler with condenser are demountable, and the bottom boiler has a vent.
Is it single or double distillation?
It is a single distillation apparatus.
Related products
- Distillation Apparatus All Glass
- Water Still Table Pattern (Barnstead Type)
- Water Still Wall Mounting
- Water Still Heavy Duty
This model is listed in the JaincoLab water distillation plant range.
Request a quote
To order the Quartz Distillation Apparatus, send the output needed, supply voltage, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-WDP-3921. Tender and project enquiries can be sent through the tenders page.
