Distillation Apparatus All Glass
Product Code : JA-WDP-3923

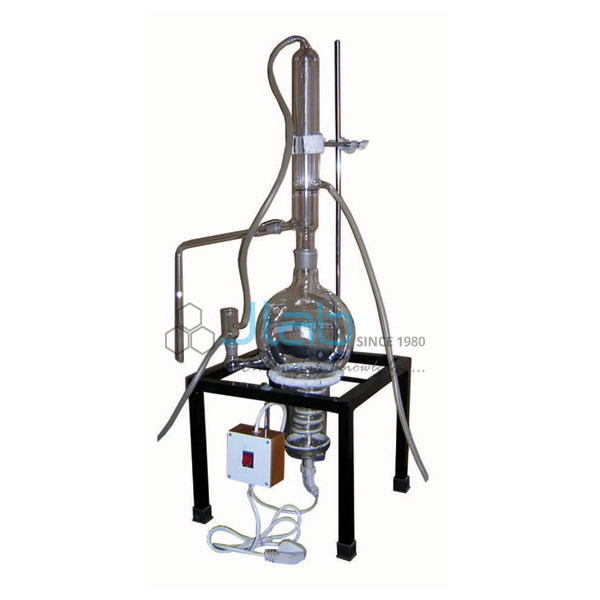

The Distillation Apparatus All Glass (SKU JA-WDP-3923) produces distilled water in an all-glass circuit: the heating element is fused inside a spiral glass coil at the bottom of the boiling flask, and the vapour condenses in a double-wall coiled condenser with standard ground glass joints. This all glass distillation apparatus comes on a metallic stand with rings, clamps and electrical fittings, and JaincoLab manufactures it for college, research and pharmaceutical laboratories.
Specifications
The unit has a glass boiling flask with heating elements fused in a spiral glass coil, a double-wall coiled condenser with standard ground glass joints, a metallic stand with rings and clamps, and works on 220/230 V AC; a low water level cut-off is optional.
| Product | Distillation Apparatus All Glass |
| SKU | JA-WDP-3923 |
| Boiling flask | Glass, heating element fused in a spiral glass coil at the bottom |
| Condenser | Double wall, coiled, standard ground glass joints |
| Stand | Metallic, with rings and clamps |
| Fittings | Glass fittings and electrical fittings |
| Protection | Low water level cut-off device, with or without (as ordered) |
| Power | 220/230 V AC |
Applications of the all glass distillation apparatus
Keeping the water in contact with glass only avoids the metal parts found in steel stills, which suits reagent preparation for chemical analysis.
- Distilled water for analytical chemistry and titrations
- Reagent preparation in pharmacy and biochemistry laboratories
- Water for college chemistry practicals
- Research laboratories that prefer an all-glass still
Scope of supply and ordering
The listing covers the all-glass distillation apparatus with flask, fused heating coil, condenser, glass fittings, stand, clamps and electrical fittings. The low water level cut-off, output per hour and spare flasks are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the output capacity, options and number of units and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
How is the water heated?
By heating elements fused into a spiral glass coil at the bottom of the flask.
Is a low water cut-off fitted?
It is supplied with or without a low water level cut-off device, as ordered.
What type of condenser is used?
A double-wall coiled condenser with standard ground glass joints.
Related products
- Quartz Distillation Apparatus
- Water Still Table Pattern (Barnstead Type)
- Water Still Wall Mounting
- Rotary Vacuum Evaporator
This model is listed in the JaincoLab water distillation plant range.
Request a quote
To order the Distillation Apparatus All Glass, send the output needed, cut-off option, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-WDP-3923. Institutions and contractors buying under a tender can also reach us via the tenders page.
