1080P Full HD Digital Microscope
Product Code : JA-M-8144

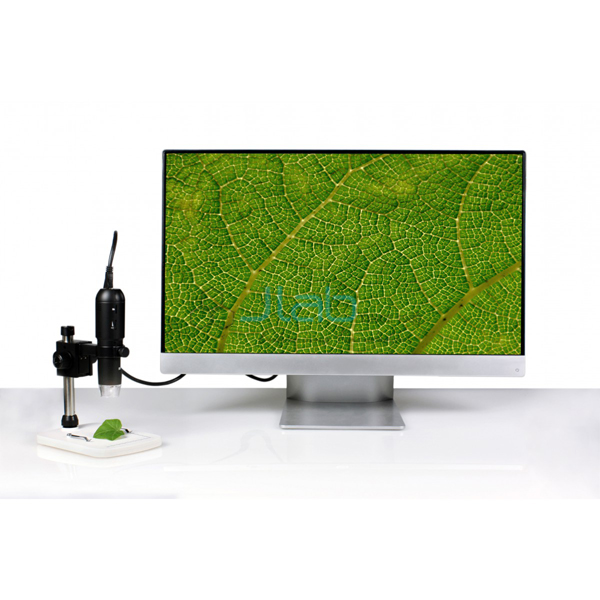

The 1080P Full HD Digital Microscope (SKU JA-M-8144) is supplied by JaincoLab with an HDMI cable so the image goes straight to a TV or monitor, letting a teacher show the whole class what is under the lens. A 3 MP sensor gives 10x to 220x, images and video save to a micro-SD card, and six LEDs are dimmed with a control wheel.
Specifications
Values listed for the HDMI digital microscope follow.
| Product | 1080P Full HD Digital Microscope |
| SKU | JA-M-8144 |
| Image sensor | 3 MP |
| Magnification | 10x-220x |
| Video output | 1080p over HDMI |
| Video format | HDMI: H.264; USB: MJPEG |
| Frame rate | Up to 30 fps under 600 lux |
| Photo | JPEG; 14M, 8M, 5M, 3M, 2M, WVGA |
| Focus range | Manual, 10-500 mm |
| Storage | Micro-SD card, up to 32 GB |
| Light source | 6 LEDs, adjustable by control wheel |
| Power | 5 V DC |
| Supplied with | HDMI cable; measurement software CD |
Uses of the 1080P HDMI digital microscope
- Whole-class display of specimens on a TV or monitor
- Recording videos and images to micro-SD for lessons
- Inspection of coins, fabrics and electronic parts
- Measuring objects with the bundled software
Scope of supply and ordering
The listing covers the digital microscope, HDMI cable and measurement software CD. Micro-SD card, stand, quantities and delivery are confirmed on the quotation.
Frequently asked questions
Does it need a computer?
No. It connects directly to a TV or monitor with an HDMI input and saves to micro-SD; a computer is used only with USB or the measurement software.
What focus range does it cover?
Manual focus from 10 mm to 500 mm, from close-up work at 220x to larger objects at low power.
