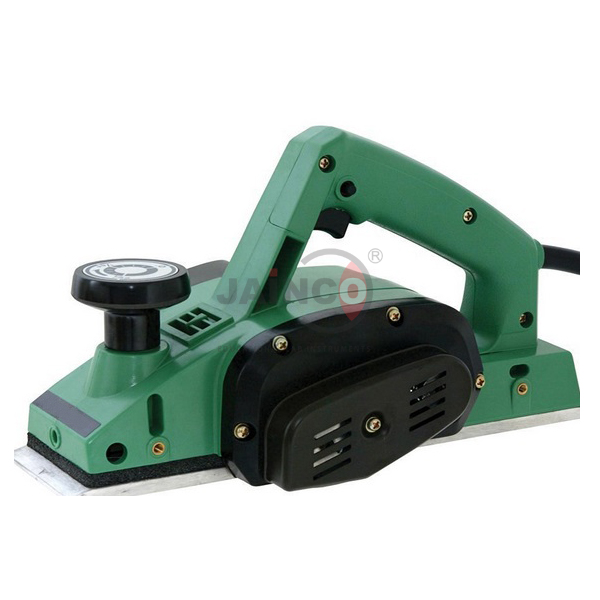

Portable Planer
Product Code : JA-WWM-8677
The portable planer is a hand-held power planer for smoothing and sizing timber in carpentry training. A 6.5 A motor gives 16,500 RPM no-load speed on a two-blade cutter; a ratcheting depth knob sets cuts from 0 to 2.6 mm (3/32 inch), and a bevel guide fence covers 0 to 45° (SKU JA-WWM-8677).
Specifications
Listed features:
| Product | Portable Planer |
| SKU | JA-WWM-8677 |
| Motor | 6.5 A |
| No-load speed | 16,500 RPM |
| Cutter | 2-blade system; convertible for larger high-speed steel blades |
| Depth of cut | 0 to 3/32 inch (2.6 mm), ratcheting depth knob |
| Chip ejection | Selectable left or right |
| Bevel guide fence | 0 to 45°, with shield over the unused blade section |
| Other features | Spring-loaded park rest; ambidextrous lock-off release button |
Scope of supply and ordering
The listing covers one portable planer, supplied by JaincoLab; the supply voltage is confirmed on the quotation. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
How is the depth of cut set?
With a ratcheting depth knob that sets 0 to 3/32 inch (2.6 mm) within one revolution.
Can shavings be directed?
Yes, chip ejection can be set to the left or the right.
Can it plane bevels?
Yes, the bevel guide fence works from 0 to 45°.
Related products
Browse the full woodworking workshop machine range for related items.
Request a quote
For a price on the Portable Planer, share the quantity and destination via the contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
