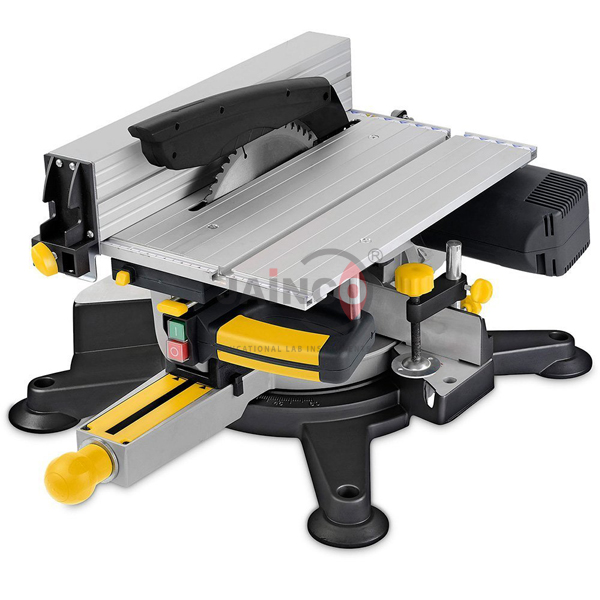

Mitre and Table Saw
Product Code : JA-WWM-8621
The mitre and table saw is a bench saw for cross, mitre and bevel cuts in carpentry training, rated at 1800 W on a 220 to 240 V supply with a blade speed of 5000 min-1. It takes a 255 x 30 x 3.0 mm blade, has a 420 x 300 x 290 mm table and cuts up to 46 mm deep, with cutting capacities listed for 90° and 45° mitre and bevel settings (SKU JA-WWM-8621).
Specifications
Listed specification:
| Product | Mitre and Table Saw |
| SKU | JA-WWM-8621 |
| Rated power | 1800 W |
| Rated voltage | AC 220 to 240 V |
| Rotation speed | 5000 min-1 |
| Blade size | 255 x 30 x 3.0 mm |
| Table size | 420 x 300 x 290 mm |
| Maximum cutting depth | 46 mm |
| Capacity 90° - 90° | 70 x 110 mm |
| Capacity 90° - 45° | 70 x 70 mm |
| Capacity 45° - 90° | 40 x 110 mm |
| Capacity 45° - 45° | 35 x 60 mm (left); 40 x 90 mm (right) |
| Sound power level | 106 dB(A) |
| Cable length | 3 m |
Scope of supply and ordering
The listing covers one mitre and table saw, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
What blade does it take?
A 255 x 30 x 3.0 mm blade.
What is the cutting capacity at 90° - 90°?
70 x 110 mm; at 45° - 45° it is 35 x 60 mm on the left and 40 x 90 mm on the right.
What sound power level is listed?
106 dB(A).
