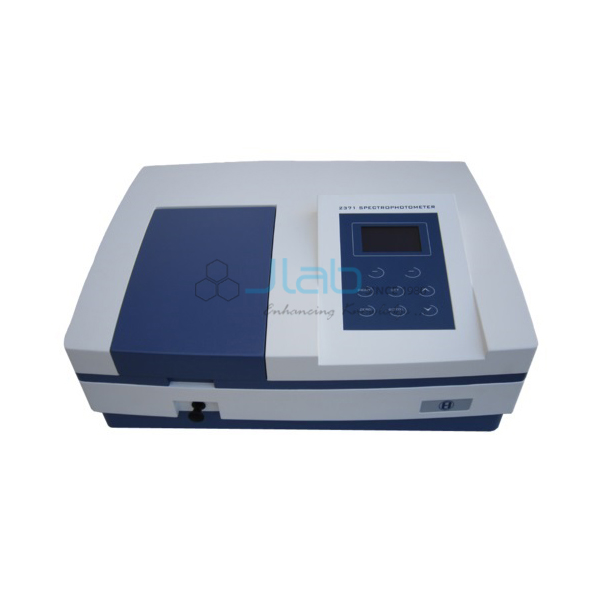

Microprocessor UV-VIS Spectrophotometer
Product Code : JA-S-6596
The Microprocessor UV-VIS Spectrophotometer (SKU JA-S-6596) is a compact single beam instrument for spectrophotometric analysis of solutions from 190 to 1000 nm, with a deuterium lamp for 190-350 nm and a tungsten halogen lamp for 350-1000 nm. This UV-VIS spectrophotometer shows %T, absorbance, concentration and K-factor on a 16 x 2 backlit LCD, stores 100 samples and has a printer output. It is supplied by JaincoLab for chemistry, pharmaceutical, water testing and biotechnology laboratories.
Specifications
The instrument works from 190 to 1000 nm with a 1200 lines/mm diffraction grating, takes 10 mm path length cuvettes in a 4-position holder and closes an automatic shutter to protect the photodiode between readings.
| Product | Microprocessor UV-VIS Spectrophotometer |
| SKU | JA-S-6596 |
| Type | Single beam, microprocessor based |
| Wavelength range | 190-1000 nm |
| Monochromator | Diffraction grating, 1200 lines/mm |
| Lamps | Deuterium (190-350 nm); tungsten halogen (350-1000 nm) |
| Display | 16 x 2 line alphanumeric backlit LCD; 4-digit wavelength display |
| Readouts | %T, absorbance, concentration, K-factor |
| Memory | 100 samples |
| Cuvette | 10 mm path length; 4-position holder |
| Shutter | Automatic |
| Outputs | Printer output for dot matrix printer; RS-232C interface on request |
Applications of the microprocessor UV-VIS spectrophotometer
Stored results and direct concentration readout make repeated quantitative tests straightforward in teaching and routine laboratories.
- Quantitative analysis in chemistry laboratories and universities
- Mineral water and drinking water testing
- Pharmaceutical and drug testing laboratories
- Biotechnology, hospital and agricultural laboratories
Scope of supply and ordering
The listing covers the single beam spectrophotometer with deuterium and tungsten halogen lamps and 4-position cuvette holder; the RS-232C interface is available on request. Cuvettes, printer, software and spare lamps are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of instruments and the delivery destination. Single units, laboratory sets and bulk institutional and tender quantities are supplied.
Frequently asked questions
What does the display show?
%T, absorbance, concentration and K-factor on a 16 x 2 backlit LCD, with a 4-digit wavelength display.
How many results can it store?
100 sample readings.
Can it connect to a computer?
An RS-232C computer interface can be provided on request; a printer output is standard.
Related products
- Microprocessor UV-VIS Spectrophotometer Single Beam
- Microprocessor UV - VIS Spectrophotometer
- Advanced Microprocessor UV-VIS Spectrophotometer Single Beam (Scanning)
- Microprocessor Visible Spectrophotometer
This model is listed in the JaincoLab spectrophotometer range.
Request a quote
To order the Microprocessor UV-VIS Spectrophotometer, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-S-6596. For tender or project supply, see our tenders page.
