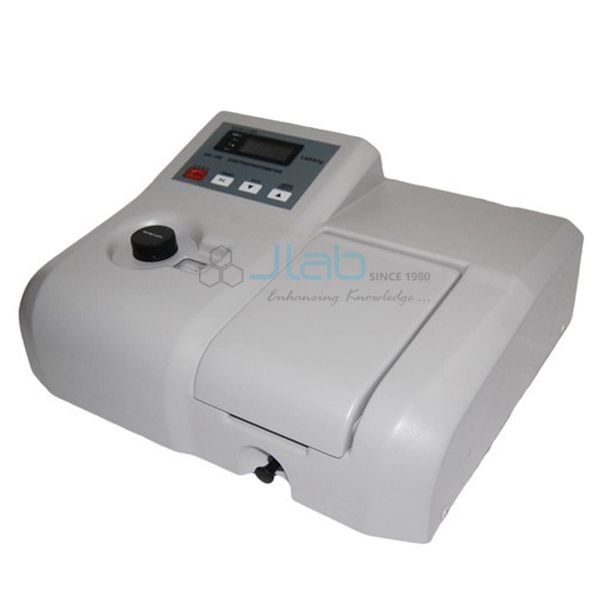

Microprocessor UV-VIS Spectrophotometer Single Beam
Product Code : JA-S-6443
The Microprocessor UV-VIS Spectrophotometer Single Beam (SKU JA-S-6443) reads transmittance, absorbance and concentration directly from 195 to 1000 nm, using a single beam diffraction grating system with a 6 V 10 W tungsten-halogen lamp and a D2 lamp. This single beam UV-VIS spectrophotometer has a 2 nm spectral bandwidth, ±0.5 nm wavelength accuracy, a K factor setting and a serial interface. It is supplied by JaincoLab for teaching, pharmaceutical, food and water testing laboratories.
Specifications
The instrument covers 195-1000 nm at 2 nm bandwidth with ±0.5 nm accuracy, reads 0.0-199.9%T, 0.000-1.999 A and 0000-1999 concentration, and runs on 230 V ±10%, 50 Hz AC.
| Product | Microprocessor UV-VIS Spectrophotometer Single Beam |
| SKU | JA-S-6443 |
| Optical system | Single beam, diffraction grating |
| Wavelength range | 195-1000 nm |
| Light sources | 6 V 10 W tungsten-halogen lamp; D2 lamp |
| Receptor | Wide range silicon photodiode |
| Wavelength accuracy | ±0.5 nm |
| Spectral bandwidth | 2 nm |
| Stray light | Less than 0.1%T at 320 nm |
| Transmittance range | 0.0-199.9%T |
| Absorbance range | 0.000-1.999 A |
| Concentration range | 0000-1999, direct reading |
| K factor | 0 to 1999 |
| Readability | ±1 count |
| Transmittance reproducibility | 0.5%T |
| Stability | 0.002 A/h or less at 500 nm |
| Interface | Serial |
| Power supply | 230 V ±10%, 50 Hz AC |
| Dimensions | 420 x 350 x 240 mm |
| Weight | 11.5 kg (net 9.75 kg) |
Applications of the single beam UV-VIS spectrophotometer
Direct concentration readout with a K factor makes routine assays quick once a standard has been measured.
- Teaching in colleges and universities
- Pharmaceutical and medicine testing
- Food, water and waste water analysis
- Environmental, agricultural and petrochemical laboratories
Scope of supply and ordering
The listing covers the single beam spectrophotometer with tungsten-halogen and D2 lamps and serial interface. Cuvettes, printer, software and spare lamps are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of instruments and the delivery destination. Single units and bulk institutional and tender quantities are supplied.
Frequently asked questions
What can it display?
Transmittance 0.0-199.9%T, absorbance 0.000-1.999 A and direct concentration 0000-1999.
How accurate is the wavelength?
±0.5 nm, with a 2 nm spectral bandwidth.
Which fields is it listed for?
Teaching, pharmaceuticals, food, water and waste water, environmental and agricultural laboratories.
