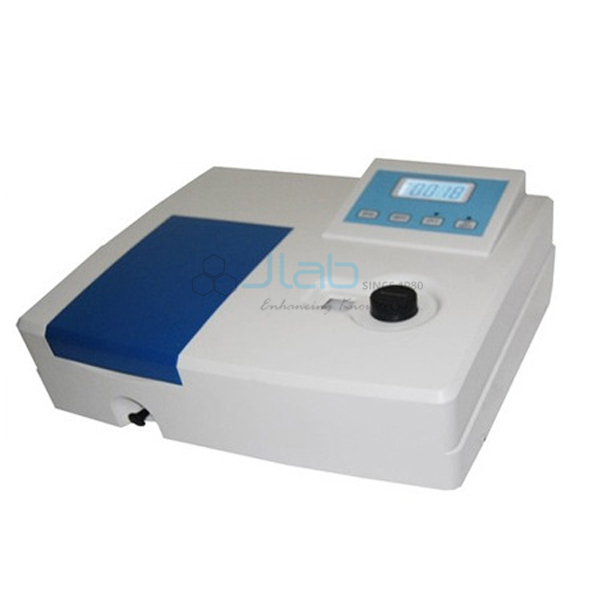

Microprocessor Visible Spectrophotometer
Product Code : JA-S-6442
The Microprocessor Visible Spectrophotometer (SKU JA-S-6442) measures transmittance and absorbance of coloured solutions across 325 to 1000 nm, using a diffraction grating, a 12 V 20 W tungsten halogen lamp and a photocell receiver. This visible spectrophotometer has a 2 nm spectral bandwidth and a 10 mm cell holder, and runs on AC 220 V. It is supplied by JaincoLab for college chemistry, water testing and quality control laboratories where UV measurement is not needed.
Specifications
The instrument covers 325-1000 nm at 2 nm bandwidth, with wavelength accuracy within 2 nm, reproducibility within 1 nm and stray light of 0.5%T or less at 360 nm.
| Product | Microprocessor Visible Spectrophotometer |
| SKU | JA-S-6442 |
| Optical system | Diffraction grating |
| Wavelength range | 325-1000 nm |
| Light source | Tungsten halogen lamp, 12 V / 20 W |
| Receiving component | Photocell |
| Wavelength accuracy | Within 2 nm |
| Wavelength reproducibility | Within 1 nm |
| Spectral bandwidth | 2 nm |
| Stray light | 0.5%T or less at 360 nm |
| Light current drift | 0.5% / 3 min |
| Dark current drift | 0.2% / 3 min |
| Cell holder | 10 mm |
| Transmittance repeatability | 0.2% or less |
| Noise | 100% noise 0.3% or less; 0% noise 0.2% or less |
| Power supply | AC 220 V ±22 V, 50 Hz ±1 Hz |
| Net weight | 11.5 kg |
Applications of the visible spectrophotometer
Coloured complexes absorb in the visible range, so this instrument covers most colorimetric methods used in teaching and routine testing.
- Colorimetric estimations in B.Sc and B.Pharm chemistry practicals
- Water analysis such as iron, phosphate and nitrate methods
- Clinical biochemistry teaching methods
- Routine quality control of coloured solutions
Scope of supply and ordering
The listing covers the visible spectrophotometer with tungsten halogen lamp and 10 mm cell holder. Cuvettes, printer, software and spare lamps are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of instruments and the delivery destination. Single units, laboratory sets and bulk institutional and tender quantities are supplied.
Frequently asked questions
What wavelength range does it cover?
325 to 1000 nm, the visible and near-infrared range, with a 2 nm bandwidth.
Can it measure in the UV range?
No. For UV work a UV-VIS model such as the Microprocessor UV-VIS Spectrophotometer Single Beam is needed.
What cell size does it take?
It has a 10 mm cell holder.
Related products
- Microprocessor UV-VIS Spectrophotometer Single Beam
- Microprocessor UV - VIS Spectrophotometer
- Microprocessor UV-VIS Spectrophotometer
- Advanced Microprocessor UV-VIS Spectrophotometer Single Beam (Scanning)
This model is listed in the JaincoLab spectrophotometer range.
Request a quote
To order the Microprocessor Visible Spectrophotometer, send the quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-S-6442. Buying under a laboratory tender? Use our tenders page.
