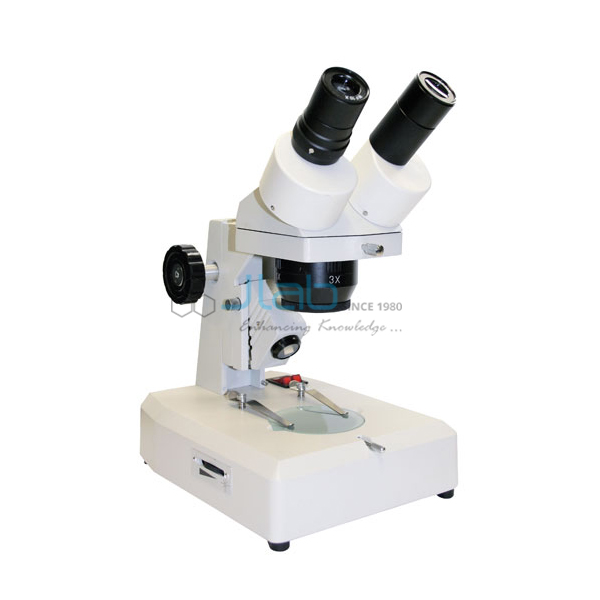

Dual Power Binocular Stereo Microscope 1X and 3X Objective
Product Code : JA-M-8107
The Dual Power Binocular Stereo Microscope 1X and 3X Objective (SKU JA-M-8107) is a stereo microscope supplied by JaincoLab for dissection work in life science and for studying the surfaces of rocks and minerals. A turret switches between the 1x and 3x objectives for 10x and 30x with the WF10x pair, and the 80 mm working distance leaves room for dissecting tools.
Specifications
The listing gives these values for the 1x/3x dual power model.
| Product | Dual Power Binocular Stereo Microscope 1X and 3X Objective |
| SKU | JA-M-8107 |
| Magnification | 10x and 30x; 15x and 45x with optional WF15x eyepieces; 20x and 60x with optional WF20x eyepieces |
| Head | Binocular, inclined 45 degrees, rotates 360 degrees; IPD 55-75 mm |
| Eyepieces | Paired WF10x; diopter on left tube; rubber eyeshields |
| Objectives | 1x and 3x on a turret |
| Working distance | 80 mm |
| Illumination | 3-way LED: transmitted, incident or both, with intensity control |
| Power | Listed as 110 V |
| Stage | Reversible black/white plate and frosted plate; lock-on stage clips |
| Body | Cast aluminium, grey enamel finish |
| Packing | Fitted foam box, dust cover, instruction manual |
Uses of the 10x and 30x dual power stereo microscope
- Dissection of plant and animal specimens with tools under the 80 mm working distance
- Surface characteristics of rocks and minerals under incident light
- Translucent specimens under transmitted light
- Higher magnification up to 60x with the optional eyepieces
Scope of supply and ordering
Each microscope comes in a fitted foam box with its WF10x pair, stage plates, dust cover and manual. Optional eyepieces, supply voltage, quantity and delivery are confirmed on the quotation.
Frequently asked questions
Can the magnification be increased?
Yes. Optional WF15x eyepieces give 15x and 45x, and optional WF20x eyepieces give 20x and 60x with the same 1x and 3x objectives.
What working distance does it have?
80 mm between the objective and the specimen, which leaves space for needles, forceps and larger samples.
