Lateral Extensometer
Product Code : JA-CT-9910

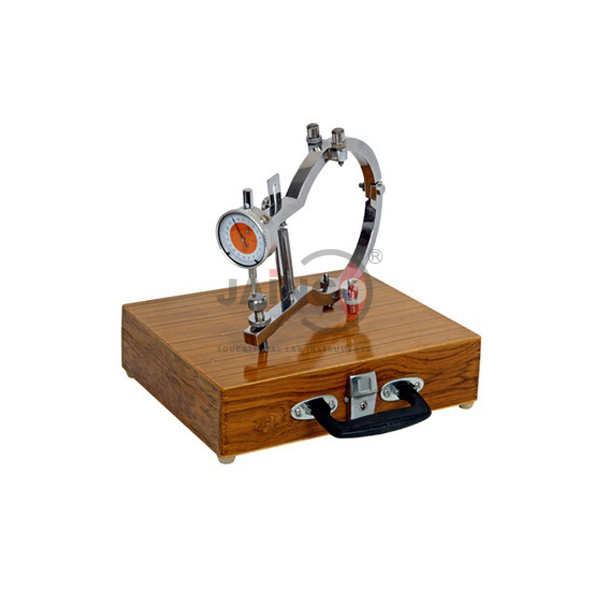

The Lateral Extensometer (SKU JA-CT-9910) measures the lateral extension of 150 mm diameter x 300 mm high concrete cylinders while they are tested in compression, giving the data for Poisson ratio. It consists of two movable frames pivoted at one end and fixed to the specimen with screws. A dial gauge measures the lateral extension, and a removable spacer strip sets the dial gauge at the start. It is supplied with a 0.002 x 5 mm dial gauge or a 0.001 x 25 mm digital dial gauge. It is supplied by JaincoLab for concrete laboratories.
Specifications
The extensometer has two pivoted movable frames with mounting screws, a removable spacer strip and a 0.002 x 5 mm dial or 0.001 x 25 mm digital dial gauge, for 150 x 300 mm cylinders.
| Product | Lateral Extensometer |
| SKU | JA-CT-9910 |
| Specimen | 150 mm dia x 300 mm high concrete cylinders |
| Frames | Two movable frames pivoted at one end |
| Mounting | Screws onto the specimen |
| Setting | Removable spacer strip for initial dial setting |
| Dial gauge | 0.002 x 5 mm, or digital 0.001 x 25 mm |
Experiments with the lateral extensometer
Students clamp the frames to a cylinder, set the dial with the spacer strip, remove it and record lateral extension at load steps in the compression machine alongside longitudinal strain.
- Lateral strain of concrete cylinders in compression
- Poisson ratio of concrete
- Stress-strain studies with a compressometer
- Research on confined concrete
- Concrete technology practicals
Scope of supply and ordering
This listing covers the lateral extensometer with the dial gauge chosen. Accessories, spares and quantities are confirmed on the quotation.
Packing, lead time and any minimum order for the Lateral Extensometer are confirmed per quotation according to order size and destination. Bulk orders for institutes are supplied, and export consignments to buyers in Africa, the Middle East and South and South-East Asia are quoted on request.
Frequently asked questions
Which specimens does it fit?
150 mm diameter x 300 mm high concrete cylinders.
How is it fixed?
With screws, using two movable frames pivoted at one end.
Which dial gauges are offered?
A 0.002 x 5 mm dial gauge or a 0.001 x 25 mm digital dial gauge.
Related products
More concrete testing apparatus is listed in the concrete testing equipment range from JaincoLab.
Request a quote
Send an enquiry for the Lateral Extensometer (SKU JA-CT-9910) with the quantity and delivery destination using the JaincoLab contact page or by email to [email protected]. Buying under a laboratory tender? Use our tenders page.
