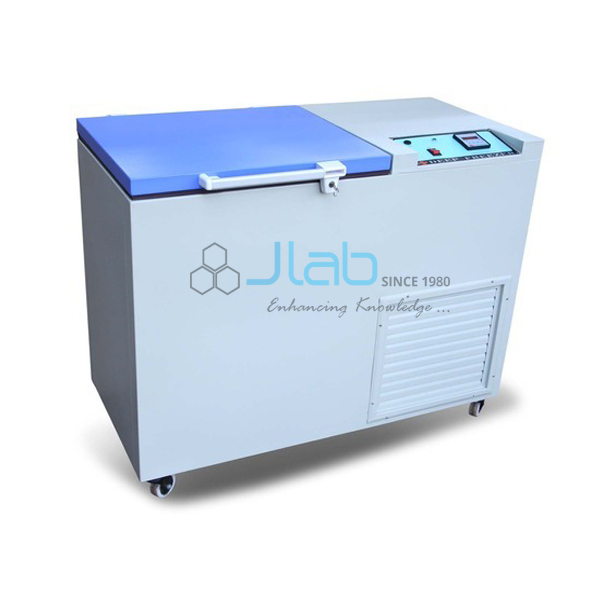

Laboratory Deep Freezer
Product Code : JA-ELA-5499
The Laboratory Deep Freezer (SKU JA-ELA-5499) is a low-temperature storage cabinet made by JaincoLab for microbiology, virology, pathology, food research and biotechnology laboratories. It holds a constant set temperature anywhere from ambient down to -20 °C or -40 °C, depending on the model, using a hermetically sealed CFC-free compressor and copper cooling coils welded around the outside of the stainless steel chamber. It is built in vertical and chest-type horizontal versions.
Specifications
Construction, temperature range and the three listed capacities are given below.
| Product | Laboratory Deep Freezer |
| SKU | JA-ELA-5499 |
| Construction | Double walled, 100 mm PUF insulation, on a sturdy angle iron frame |
| Inner chamber | Stainless steel 304 |
| Outer body | Mild steel sheet, powder coated |
| Door | Full-view acrylic glass door |
| Temperature range | Ambient to -20 °C or -40 °C |
| Cooling | Hermetically sealed CFC-free compressor; copper coils welded on the outside of the chamber |
| Control | Microprocessor-based digital temperature indicator-cum-controller |
| Capacities | 4 cu ft (112 L), 6 cu ft (171 L), 10 cu ft (280 L) |
| Models | Vertical; chest type horizontal |
| Mobility | Castor wheels |
| Power | 220/230 V AC |
Where it is used
- Storing microbial cultures, sera and reagents in microbiology and virology
- Pathology and biotechnology sample storage
- Frozen samples in food research laboratories
Scope of supply and ordering
Choose the capacity, temperature range and vertical or chest model; these, together with quantity and packing, are confirmed on the quotation.
Frequently asked questions
What temperatures can it reach?
From ambient down to -20 °C or -40 °C, depending on the model chosen.
Which capacities are listed?
112 litres (4 cu ft), 171 litres (6 cu ft) and 280 litres (10 cu ft).
Is it available as a chest freezer?
Yes. It is made in vertical and chest-type horizontal models.
Related products
Cold storage and incubation equipment is in the educational laboratory apparatus range.
Request a quote
Send the capacity, temperature range and model you need for the Laboratory Deep Freezer (JA-ELA-5499) through the contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
