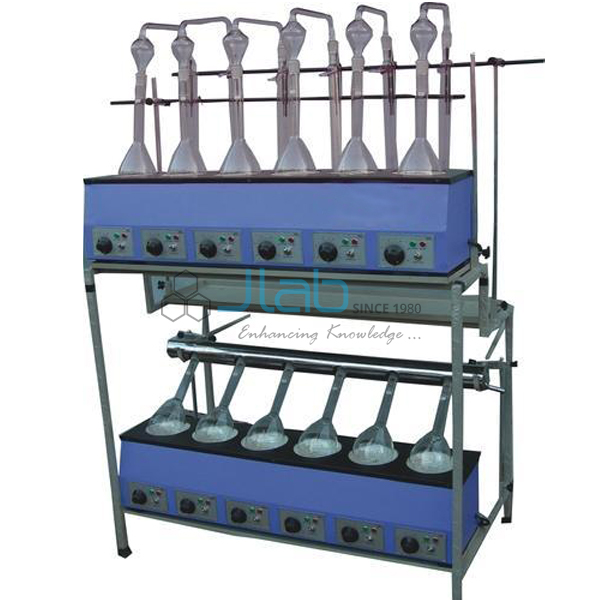

Kjeldahl Distillation & Digestion Combined Unit
Product Code : JA-CE-4001
The Kjeldahl Distillation and Digestion Combined Unit (SKU JA-CE-4001) is a bench-stand system for total nitrogen and protein determination, with one mantle-type platform for digestion and a second for distillation. It suits food-testing, agricultural and university laboratories that run the Kjeldahl method regularly. This Kjeldahl combined unit uses spun aluminium mantle bodies and glass-yarn heating mantles rated 200 W per test, and withstands temperatures up to 350°C. JaincoLab supplies it with or without glass parts and clamps.
Specifications
Each heating mantle is made from glass yarn lagged with special-grade mineral wool and sits in a mantle body spun in one piece from non-rusting aluminium and stove-painted; the two platforms have individual energy regulators, are rated 200 W per test and work on 220/230 V AC.
| Product | Kjeldahl Distillation & Digestion Combined Unit |
| SKU | JA-CE-4001 |
| Heating platforms | Two sets, mantle type: one for digestion, one for distillation |
| Maximum temperature | Up to 350°C |
| Mantle body | Spun in one piece from non-rusting aluminium, stove-painted |
| Mantle capacity | Up to 5.0 litres |
| Heating mantles | Glass yarn, lagged with special-grade mineral wool |
| Rating | 200 W per test |
| Control | Individual energy regulators for the digestion and distillation units |
| Fitted accessories | Condenser rack, fume duct, pair of hangers |
| Stand | M.S. tubular stand |
| Glass parts and clamps | Available with or without |
| Power supply | 220/230 V AC |
Applications of the Kjeldahl combined unit
The combined unit is used to carry a sample through the Kjeldahl method on one stand: acid digestion on the first mantle platform, then distillation of the ammonia on the second, after which the distillate is titrated and the nitrogen or protein content is calculated.
- Crude protein determination in food, feed and grain samples
- Total nitrogen in soil, fertiliser and plant samples at agricultural laboratories
- Kjeldahl practicals in B.Sc., M.Sc., food technology and agriculture courses
- Quality-control nitrogen checks in chemical and food laboratories
Scope of supply and ordering
Supply covers the combined unit with its two mantle platforms, energy regulators, condenser rack, fume duct and hangers on the M.S. tubular stand. Glass parts and clamps are optional, so state whether you want them; accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing depend on the configuration, the number of units and where they are going, and are confirmed on each quotation. Laboratory, college and bulk project orders are supplied, including export shipments to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What temperature can the Kjeldahl combined unit reach?
It is built to withstand temperatures up to 350°C, with each test position rated 200 W.
What are the heating mantles made of?
The mantles are made from glass yarn lagged with special-grade mineral wool, inside a one-piece spun aluminium body that is stove-painted.
Is the glassware included?
The unit is available with or without glass parts and clamps; state your choice when asking for a quotation.
What power supply does it use?
The mantle heating system works on 220/230 V AC.
