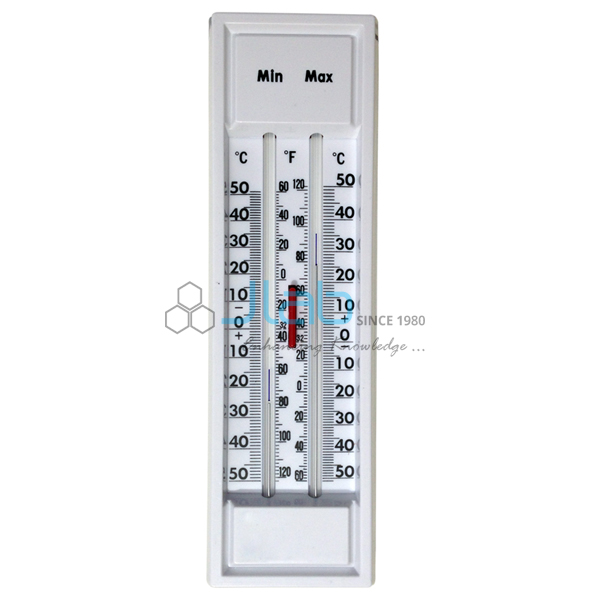

Minimum Maximum Thermometer
Product Code : JA-CE-4338
The Minimum Maximum Thermometer (SKU JA-CE-4338) records the highest and the lowest temperature reached since it was last reset, so a single reading shows the day's extremes. It is a U-shaped mercury-in-glass design with alcohol or oil-filled bulbs and reads from -20 to +50°C. This min max thermometer is used for weather observation in schools, for monitoring store rooms and greenhouses, and in science lessons on thermal expansion. JaincoLab supplies it with a magnet-reset index.
Specifications
The thermometer is a U-shaped parallel glass tube with mercury in the bend and a bulb of alcohol or oil at the top of each limb; expansion of the fluid drives the mercury along the minimum and maximum scales, which read from -20 to +50°C, and a celluloid graduated scale with magnet index holds each reading.
| Product | Minimum Maximum Thermometer |
| SKU | JA-CE-4338 |
| Temperature range | -20 to +50°C |
| Design | U-shaped parallel glass tube, mercury in the bend |
| Bulb fluid | Alcohol or oil |
| Scales | Separate minimum and maximum scales |
| Index | Celluloid graduated scale with magnet index |
Uses of the minimum maximum thermometer
The thermometer is read once a day and then reset: the two indices show the lowest and highest temperatures since the last reset, which makes it a simple way to record daily temperature range for weather studies, storage monitoring and plant-growth experiments.
- Daily maximum and minimum temperature readings in school weather stations
- Monitoring temperature extremes in store rooms, greenhouses and animal houses
- Geography and environmental science field records
- Demonstrating thermal expansion of liquids in physics lessons
Scope of supply and ordering
Each unit is one minimum maximum thermometer with its magnet index. Handling, use and disposal must follow the regulations that apply to this material in the destination country. Wall mounts, spare units and quantities are confirmed on the quotation.
MOQ, lead time and packing are confirmed on each quotation according to the quantity and delivery destination. Thermometers are supplied to schools, colleges and education projects and on export orders to Africa, the Middle East and South and South-East Asia, subject to the rules for mercury-containing instruments in the destination country.
Frequently asked questions
What temperature range does the thermometer cover?
It reads from -20 to +50°C.
How are the readings reset?
The indices are reset with the magnet after each reading so the next period starts fresh.
Does the thermometer contain mercury?
Yes, it is a mercury-in-glass design with alcohol or oil in the bulbs, so import and disposal rules for mercury apply.
Related products
Browse more instruments in Chemistry Equipment and the full chemistry lab equipment range.
Request a quote
To order the Minimum Maximum Thermometer, send the quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
