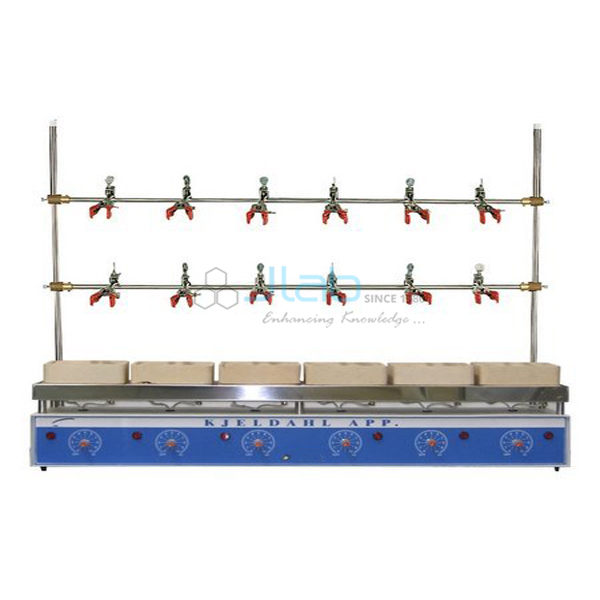

Kjeldahl Distillation Digestion Unit
Product Code : JA-CE-2298
The Kjeldahl Distillation Digestion Unit (SKU JA-CE-2298) brings the two stages of the Kjeldahl method onto one bench stand: a mantle-type platform for digesting samples and a second platform for distilling the released ammonia. This Kjeldahl digestion and distillation unit is used for nitrogen and protein estimation in food-testing, agricultural and college chemistry laboratories. JaincoLab builds it in 3-test and 6-test versions, each heating position with its own energy regulator.
Specifications
The unit consists of two sets of mantle-type heating platforms, one for digestion and one for distillation, with an individual energy regulator for each position, a condenser rack, a lead fume duct and a pair of hangers, all mounted on a mild steel sheet tubular stand and run from 220 V AC.
| Product | Kjeldahl Distillation Digestion Unit |
| SKU | JA-CE-2298 |
| Heating platforms | Two sets, mantle type: one for digestion, one for distillation |
| Temperature control | Individual energy regulator for each heating position |
| Models | 3-test mantle type with 3 energy regulators; 6-test mantle type with 6 energy regulators |
| Fitted accessories | Condenser rack, lead fume duct, pair of hangers |
| Stand | Mild steel sheet tubular stand |
| Power supply | 220 V AC, 50 Hz, single phase |
Applications of the Kjeldahl digestion and distillation unit
The unit is used wherever total nitrogen has to be determined by the Kjeldahl method, and protein is then calculated from the nitrogen figure: samples are digested on the first platform, and the digest is distilled on the second so the ammonia can be collected and titrated.
- Protein estimation of food and feed samples in food-testing laboratories
- Nitrogen content of soil and plant material in agricultural research laboratories
- Teaching the digestion, distillation and titration steps of the Kjeldahl method in B.Sc., M.Sc. and food technology practicals
- Routine nitrogen checks on chemical and food samples in quality-control laboratories
Scope of supply and ordering
The listing covers the Kjeldahl unit in the chosen model (3-test or 6-test) with its two mantle-type heating platforms, energy regulators, condenser rack, lead fume duct and hangers on the tubular stand. Kjeldahl flasks, condensers and other glassware are not itemised in the product data, so accessories, spares and quantities are confirmed on the quotation.
MOQ, lead time and packing are set out on each quotation according to the model, the number of units and the delivery destination. Orders from single laboratories, colleges and research institutes are handled, as are bulk and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which test capacities are available?
The unit is listed as a 3-test mantle-type model with 3 energy regulators and a 6-test mantle-type model with 6 energy regulators.
What power supply does the Kjeldahl unit need?
It is designed to work on 220 V AC, 50 Hz, single phase.
Are Kjeldahl flasks and condensers included?
The listing covers the heating platforms, regulators, condenser rack, lead fume duct, hangers and stand. Flasks, condensers and other glassware are confirmed separately on the quotation.
Related products
- Kjeldahl Distillation & Digestion Combined Unit
- Distillation Apparatus
- Fractional Distillation Assembly
- Electric Water Still
See the rest of the Chemistry Equipment range or browse all chemistry lab equipment from JaincoLab.
Request a quote
To order the Kjeldahl Distillation Digestion Unit, send the model, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
