Force Board wall type
Product Code : JA-FMDE-7797

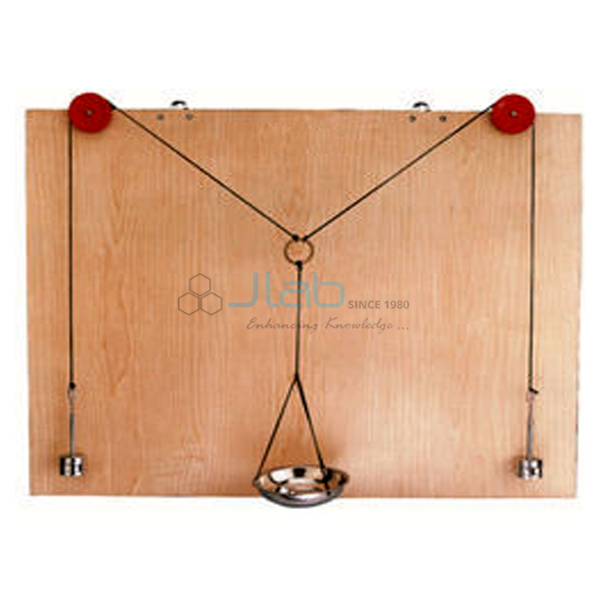

The Force Board wall type (SKU JA-FMDE-7797) is a wall-mounted board for demonstrating how several forces acting at a point combine and balance. This wall-mounted force board for the parallelogram of forces is fixed with metal brackets and comes complete with cords, pulleys and masses, and a clear margin all round the board leaves room to attach pulleys wherever they are needed. JaincoLab manufactures it in India for school and college physics laboratories.
Specifications
The Force Board wall type is fitted with metal brackets for fixing to a wall, is supplied complete with mounting brackets, cords, pulleys and masses, and is designed with a clear space all round its edge for attaching pulleys, for demonstrating the parallelogram and polygon of forces.
| Product | Force Board wall type |
| SKU | JA-FMDE-7797 |
| Mounting | Wall mounted, fitted with metal brackets |
| Principles demonstrated | Parallelogram of forces and polygon of forces |
| Supplied with | Mounting brackets, cords, pulleys and masses |
| Board layout | Clear space left all round the edge for attaching pulleys |
Uses of the wall-mounted force board for the parallelogram of forces
The force board is used to show that forces behave as vectors: masses hung on cords over pulleys fixed round the board pull on a common knot, and when it is in equilibrium the directions and sizes of the forces can be marked on paper on the board and compared with a parallelogram or polygon construction.
- Verifying the parallelogram law of vector addition with three forces in equilibrium
- Finding an unknown weight using the parallelogram law
- Demonstrating the polygon of forces with four or more concurrent forces
- Resolving a force into components for whole-class discussion, since the board is wall mounted
Scope of supply and ordering
Each unit is one wall-type force board supplied complete with mounting brackets, cords, pulleys and masses, as listed above. Additional pulleys, masses and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies single boards for school laboratories, bulk orders for colleges and education projects, and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the Force Board wall type demonstrate?
It demonstrates the parallelogram and polygon of forces, showing how concurrent forces combine and balance.
What is supplied with the board?
The board is supplied complete with mounting brackets, cords, pulleys and masses.
How is it installed?
It is fitted with metal brackets for fixing to a wall, and a clear space round the edge allows pulleys to be attached at any position.
