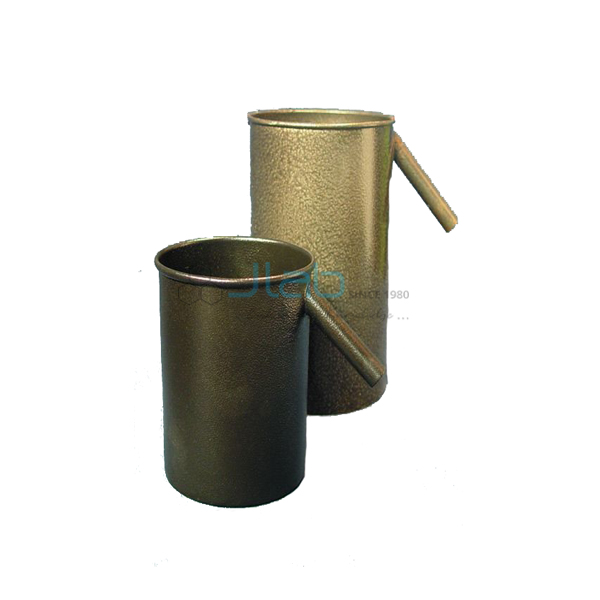

Displacement Vessel 225 x 125 mm
Product Code : JA-FMDE-7778
The Displacement Vessel 225 x 125 mm (SKU JA-FMDE-7778) is the largest vessel in the displacement range: a mild steel overflow vessel with a handle and an overflow spout. This mild steel displacement vessel with handle takes larger solids than the smaller sizes, and the liquid they push out runs from the spout into a measuring vessel for volume, density and upthrust work. JaincoLab manufactures it in India for school and college physics laboratories.
Specifications
The Displacement Vessel is made of mild steel, measures approximately 225 x 125 mm and has a handle for lifting and pouring and an overflow spout through which displaced liquid is collected.
| Product | Displacement Vessel 225 x 125 mm |
| SKU | JA-FMDE-7778 |
| Material | Mild steel |
| Dimensions | 225 x 125 mm approx. |
| Fittings | Handle and overflow spout |
Uses of the large mild steel displacement vessel
The large displacement vessel is used when the solid under test is too big for the smaller cans: it is filled to the overflow spout, the object is lowered in, and the overflowing liquid is collected to give the volume of the object.
- Measuring the volume of larger irregular solids by displacement
- Finding the density or specific gravity of bulky samples
- Collecting displaced liquid in upthrust and floating experiments
- Class demonstrations where the displaced volume must be visible to a group
Scope of supply and ordering
Each unit is one mild steel displacement vessel of approximately 225 x 125 mm with a handle and overflow spout, as listed above. Quantities and any measuring cylinders or accessories are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies school orders, bulk quantities for colleges and education projects, and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What size and material is this displacement vessel?
It is made of mild steel and measures approximately 225 x 125 mm, with a handle and an overflow spout.
When should the large vessel be chosen over the smaller ones?
Choose it for solids that do not fit the 100 x 50 mm or 115 x 90 mm vessels, which are also listed.
