Flow Table Motorised
Product Code : JA-CT-9907

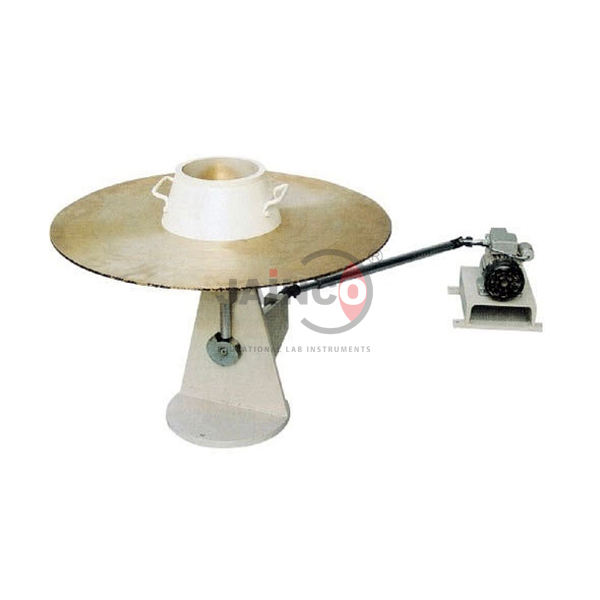

The Flow Table Motorised (SKU JA-CT-9907) is a powered flow table for measuring the flow of fresh concrete. Its 76.2 cm diameter table top is finely machined from a solid brass casting with integrally cast ribs for support and strength. A ground and hardened steel cam, driven by an electric geared motor, lifts and drops the table by 12.5 mm. The cast iron stand is of sturdy construction, with holes in the base plate for fixing to a foundation. A flow mould of 250 mm base diameter, 170 mm top diameter and 120 mm height is included. It is supplied by JaincoLab.
Specifications
The table has a 76.2 cm brass top, a 12.5 mm cam drop driven by a geared motor, a cast iron stand with foundation holes and a 250/170/120 mm flow mould, and runs on 220 V, 50 Hz single phase.
| Product | Flow Table Motorised |
| SKU | JA-CT-9907 |
| Table top | 76.2 cm diameter, machined solid brass casting with cast ribs |
| Drop | 12.5 mm by ground and hardened steel cam |
| Drive | Electric geared motor |
| Stand | Cast iron, base plate drilled for foundation mounting |
| Flow mould | 250 mm base dia, 170 mm top dia, 120 mm high |
| Power supply | 220 V, 50 Hz, single phase AC |
Applications of the motorised flow table
Technicians fill the mould on the table, lift it off and run the motor for the set number of drops, then measure the spread to calculate the flow of the concrete.
- Flow of fresh concrete
- Workability comparison of mixes
- Admixture and water content trials
- Quality control of plastic concrete
- Concrete technology practicals
Scope of supply and ordering
This listing covers the motorised flow table with flow mould. Accessories, spares and quantities are confirmed on the quotation. Drop counter and foundation bolts are confirmed on the quotation.
Lead time, MOQ and packing are set on each quotation for the ordered quantity and delivery destination. The Flow Table Motorised can be ordered for a single laboratory or as part of a complete laboratory package for a college or training programme.
Frequently asked questions
What is the table diameter?
76.2 cm, machined from a solid brass casting.
How far does the table drop?
12.5 mm, by a hardened steel cam driven by a geared motor.
What size is the flow mould?
250 mm base diameter, 170 mm top diameter and 120 mm high.
