LED Characteristics Apparatus
Product Code : JA-OED-1055

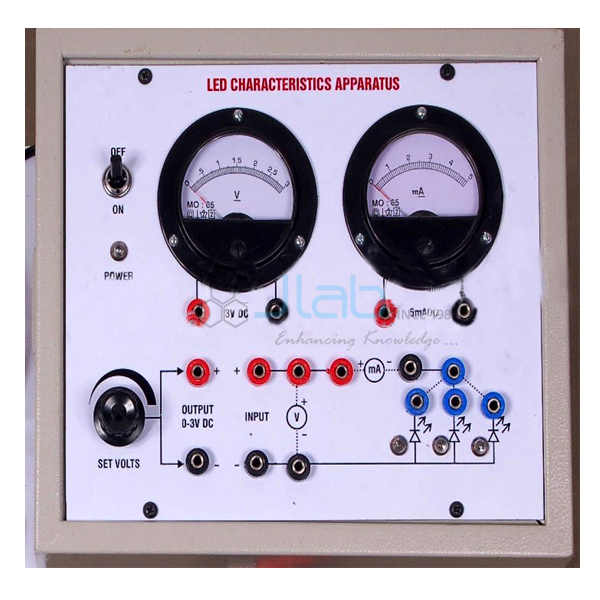

The LED Characteristics Apparatus (SKU JA-OED-1055) is used to study the V-I characteristics of a light emitting diode. The LED is mounted on the panel with its connections brought out to terminals, and a regulated 0-3 V DC, 25 mA supply lets the voltage be raised step by step while two round meters show the voltage across the LED and the current through it.
Specifications
The listing gives these details:
| Product | LED Characteristics Apparatus |
| SKU | JA-OED-1055 |
| Power supply | Regulated DC, 0-3 V, 25 mA |
| Meters | Two round meters, voltage and current |
| Device under test | LED on panel |
| Connections | Supply and LED brought out to terminals |
| Size | 10 x 8 x 4 in |
Scope of supply and ordering
One apparatus per order line. Quantities and packing are confirmed on the quotation.
Frequently asked questions
What does the LED Characteristics Apparatus study?
The V-I characteristics of a light emitting diode.
What supply and meters does it have?
A regulated 0-3 V DC, 25 mA supply with two round meters for voltage and current.
