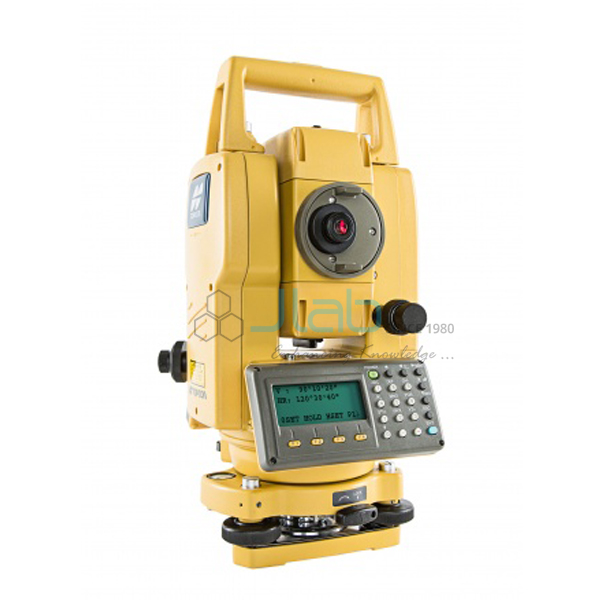

Electronic Total Station Reflectorless
Product Code : JA-SI-1714
The Electronic Total Station Reflectorless (SKU JA-SI-1714) is a total station that can measure to surfaces without a prism as well as to reflectors, together with angles read to 1 second accuracy. This reflectorless total station is supplied by JaincoLab to survey firms, construction sites, colleges and polytechnics for detail survey, building facades and points that cannot be reached with a prism pole.
Specifications
The telescope gives an erect image at 30x with a 45 mm effective aperture (50 mm on the DTM version), 154 mm length, 1°30' field of view and 1 m minimum focus; angles are read with dual horizontal and vertical detection to 1" accuracy with liquid-electric compensation.
| Product | Electronic Total Station Reflectorless |
| SKU | JA-SI-1714 |
| Detection | Horizontal: dual; vertical: dual |
| Telescope | Erect image, 154 mm long, 30x |
| Effective aperture | 45 mm (DTM version: 50 mm) |
| Field of view | 1°30' |
| Minimum focus | 1 m |
| Angle accuracy | 1" |
| Vertical compensation | Liquid-electric detection |
| Vial sensitivity | Plate vial 30"/2 mm; circular vial 8'/2 mm |
| Optical plummet | Erect image, 3x, focusing 0.5 m to infinity, 5° field of view |
| Display | Dual sides |
| Battery | Rechargeable Ni-H, 6 V DC, about 8 hours operation |
| Dimensions | 200 x 180 x 350 mm |
| Weight | 5.8 kg |
Applications of the reflectorless total station
Reflectorless measurement lets the surveyor pick up walls, corners, overhead points and hazardous areas without sending a prism holder there, while the same instrument still handles normal traverse and setting-out work.
- Detail surveys of buildings, facades and structures
- Topographic and as-built surveys on construction sites
- Setting out and checking of structures
- Advanced surveying practicals in engineering colleges
Scope of supply and ordering
The listing covers the reflectorless total station with its rechargeable Ni-H battery. Reflectorless range, charger, prisms, tripod, data transfer and software are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the version, the number of instruments and the delivery destination. JaincoLab supplies single instruments and sets for survey firms, colleges and tender orders.
Frequently asked questions
What angle accuracy does it have?
The listed angle accuracy is 1 second, with dual horizontal and vertical detection.
What is the telescope magnification?
30x with an erect image and a 45 mm effective aperture (50 mm on the DTM version).
How long does the battery last?
The 6 V DC rechargeable Ni-H battery gives about 8 hours of operation.
Related products
- Electronic Total Station
- Positioning Electronic Total Station
- Electronic Theodolite
- Distance Measure Laser
Total stations, theodolites and levels are listed in the JaincoLab surveying instruments range.
Request a quote
To order the Electronic Total Station Reflectorless, send the range needed, accessories, quantity and delivery destination through the JaincoLab contact page or email [email protected]. Buying under a laboratory tender? Use our tenders page.
