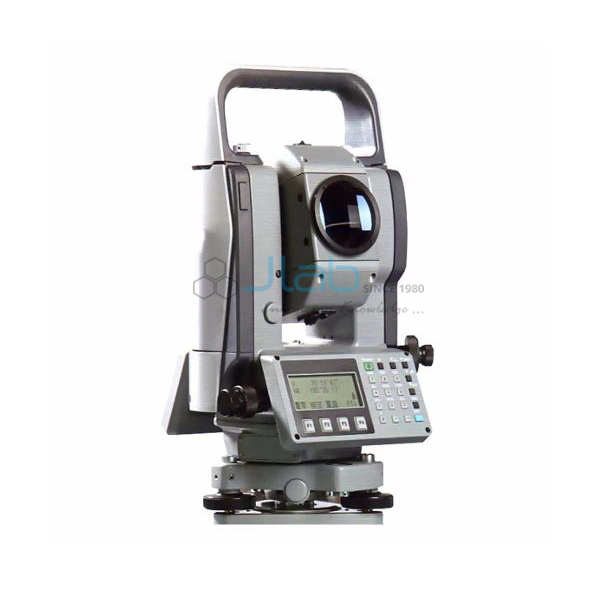

Positioning Electronic Total Station
Product Code : JA-SI-6431
The Positioning Electronic Total Station (SKU JA-SI-6431) is a complete total station kit for angle and distance surveys: 30x telescope, 1 second least count, 2 second accuracy and a 2000 m range on a single prism. It comes with tripod, prism assembly and pole, data cable and download software, so it can be used in the field straight away. It is supplied by JaincoLab to colleges and survey teams.
Specifications
The instrument has 30x magnification, a 1" least count and 2" angle accuracy, measures up to 2000 m on a single prism with a distance accuracy of 2 mm + 2 ppm x D, and has a 1°30' field of view, a two-side graphic LCD with 24 alphanumeric keys and 24000-point internal memory.
| Product | Positioning Electronic Total Station |
| SKU | JA-SI-6431 |
| Magnification | 30x |
| Least count | 1" |
| Angle accuracy | 2" |
| Range, single prism | 2000 m |
| Distance accuracy | 2 mm + 2 ppm x D |
| Field of view | 1°30' |
| Display | Two-side graphic LCD, 24 alphanumeric keys |
| Internal memory | 24000 points |
| Accessories | Battery, battery charger, plastic rain cover, instruction manual, toolkit with case, plastic carrying case |
| Field kit | Download software with data transfer cable (1), wooden tripod (1), single-tilt prism holder (1), single prism assembly (1), prism pole with bubble (1) |
Applications of the total station kit
Supplied with its tripod, prism set and software, the kit covers a full survey workflow: setting up over a station, measuring angles and distances to a prism, storing points and downloading them for plotting and area or volume work.
- Traverse, detail and topographic surveys
- Setting out on building, road and pipeline projects
- Downloading stored points for drawings and area calculation
- Total station practicals in civil engineering and polytechnic courses
Scope of supply and ordering
The listing covers the total station with battery, charger, rain cover, instruction manual, toolkit, carrying case, download software and cable, wooden tripod, single-tilt prism holder, single prism assembly and prism pole with bubble. Extra prisms and batteries are quoted separately. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the number of kits and the delivery destination. JaincoLab supplies single kits and multiple kits for colleges, survey organisations and institutional orders.
Frequently asked questions
How far does it measure on one prism?
Up to 2000 m on a single prism, with a distance accuracy of 2 mm + 2 ppm x D.
How many points can it store?
The internal memory holds 24000 points, downloadable with the supplied software and cable.
Is a tripod and prism included?
Yes. A wooden tripod, single prism assembly, single-tilt prism holder and prism pole with bubble are included.
Related products
Theodolites, levels and laser distance meters are listed in the JaincoLab surveying instruments range.
Request a quote
To order the Positioning Electronic Total Station, send the number of kits and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
