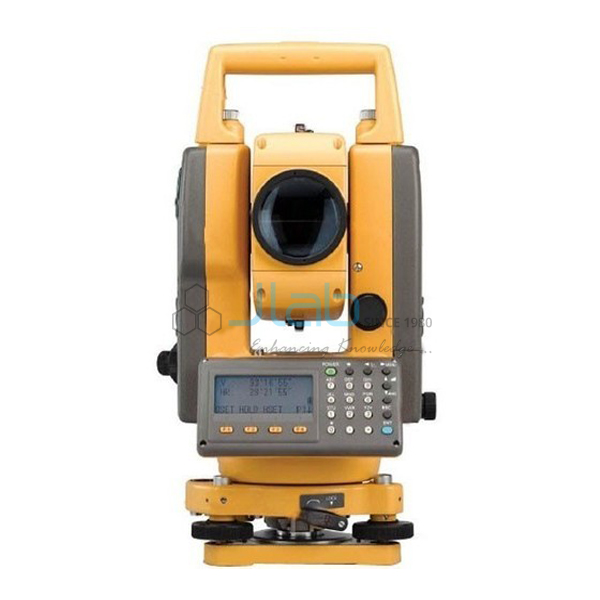

Electronic Total Station
Product Code : JA-SI-1713
The Electronic Total Station (SKU JA-SI-1713) combines an electronic theodolite with an infrared distance meter, measuring angles and distances in one set-up and storing the readings. This electronic total station is listed in 2 second and 5 second versions and is supplied by JaincoLab to civil engineering colleges, polytechnics, survey firms and project sites that need traversing, detail survey and setting out.
Specifications
The instrument has a 1°30' field of view and 1.0 m minimum focus, reads angles in degree, gon or mil with 1" or 5" display resolution and 2" or 5" accuracy by absolute encoding, and measures distance by modulated infrared light with 2 mm + 2 ppm accuracy.
| Product | Electronic Total Station |
| SKU | JA-SI-1713 |
| Field of view | 1°30' |
| Minimum focus | 1.0 m |
| Angle units | Degree, gon or mil, selectable |
| Angle display resolution | 1" / 5" |
| Angle accuracy | 2" or 5" (two versions) |
| Angle measuring mode | H and V, absolute encoding |
| Distance measurement | Modulated infrared light |
| Range, 1 prism | 1.8 km (2" version) / 1.6 km (5" version) |
| Range, 3 prisms | 2.6 km / 2.3 km |
| Distance accuracy | 2 mm + 2 ppm |
| Distance units | Metres or feet, selectable |
| Distance display resolution | 0.001 m fine; 0.01 m tracking |
| Atmospheric correction | Parameters entered, corrected automatically |
| Interface | RS-232, 1200 to 115200 bps |
| Display | Graphic dot-matrix LCD, 20 characters x 6 lines, illuminated |
| Keyboard | Dual face, alphanumeric, 28 keys |
| Power | Detachable battery |
Applications of the electronic total station
Because it records angles and distances together and can pass the data to a computer, a total station is used for traverse and detail surveys, contour and topographic mapping, setting out of buildings and roads and the total-station exercises now included in surveying courses.
- Traverse, detail and topographic surveys
- Setting out of buildings, roads and pipelines
- Contour and area computation from stored points
- Total station practicals in civil engineering and polytechnic courses
Scope of supply and ordering
The listing covers the electronic total station in the 2" or 5" version with detachable battery. Charger, prisms, prism poles, tripod, data cable and software are confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the version, the number of instruments and the delivery destination. JaincoLab supplies single instruments and sets for colleges, survey organisations and institutional or tender orders.
Frequently asked questions
Which accuracy versions are listed?
The total station is listed with 2" and 5" angle accuracy.
How far does it measure with prisms?
1.8 km (2" version) or 1.6 km (5" version) on one prism, and 2.6 km or 2.3 km on three prisms.
Can data be transferred to a computer?
Yes. It has an RS-232 interface with baud rates from 1200 to 115200 bps.
