Electromagnet For Physics Lab Educational
Product Code : JA-PLE-4145

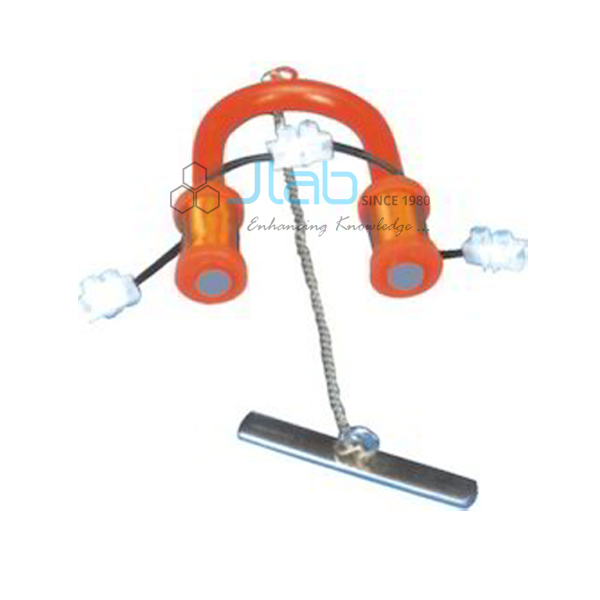

The Electromagnet For Physics Lab Educational (SKU JA-PLE-4145) is a U-shaped mild steel electromagnet with a copper-wound bobbin on each limb, which becomes a horseshoe magnet able to hold its iron keeper when a 4–6 V DC supply is connected. This U-shaped electromagnet for school physics lab work is listed in four sizes, and JaincoLab supplies it with a keeper and carrying hook for electromagnetism practicals.
Specifications
The electromagnet is a mild steel U-bar of circular cross-section fitted with bobbins of heavy gauge copper wire, with pole faces ground flat for good contact with the iron armature; it runs on 4–6 V DC and is listed in four length x bar diameter sizes.
| Product | Electromagnet For Physics Lab Educational |
| SKU | JA-PLE-4145 |
| Core | Mild steel U-shaped bar of circular cross-section |
| Windings | Bobbins wound with heavy gauge copper wire; connections show the winding direction of each pole |
| Pole faces | Ground flat for good magnetic contact with the iron armature |
| Supply | 4–6 V DC |
| Sizes (length x bar diameter) | 100 x 12 mm, 150 x 12 mm, 100 x 15 mm, 150 x 15 mm |
| Supplied with | Keeper with hook and carrying hook |
Applications of the U-shaped electromagnet in school physics
Connected to a low-voltage DC supply, the electromagnet lets students see that a current in coils around a steel core produces a magnet whose poles depend on the winding direction, and whose attraction largely disappears when the current is switched off.
- Demonstrating the magnetic effect of an electric current in a coil
- Identifying the polarity of each pole from the winding direction
- Lifting the keeper and small loads by the hook to compare holding force at different currents
- Showing the field between the poles with iron filings or a plotting compass
Scope of supply and ordering
The listing covers the electromagnet in the size ordered, with its keeper with hook and carrying hook. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the sizes, quantities and delivery destination. JaincoLab supplies schools and colleges directly, handles bulk orders for education programmes and ships export orders to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which sizes are available?
Four length x bar diameter sizes are listed: 100 x 12 mm, 150 x 12 mm, 100 x 15 mm and 150 x 15 mm.
What supply does it need?
It operates on 4–6 V DC.
What is supplied with the electromagnet?
A keeper with hook and a carrying hook.
