Convex Mirror Glass
Product Code : JA-PLE-4213

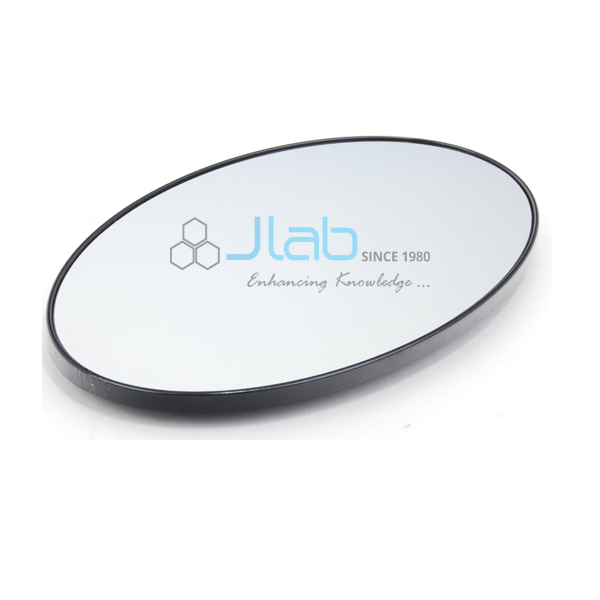

Convex Mirror Glass (SKU JA-PLE-4213) is an optically worked spherical glass mirror, silvered on the back with a protective coating, for ray optics experiments on reflection from curved surfaces. It is offered in 50 mm and 75 mm diameters, each in focal lengths from 50 mm to 300 mm. This convex mirror for physics labs is a standard item in school and college optics practicals and is used with an optical bench or on a drawing board with pins.
Specifications
The mirror is optically worked glass, silvered on the back and protected by a coating, supplied in 50 mm or 75 mm diameter with focal lengths of 50, 75, 100, 150, 200 or 300 mm.
| Product | Convex Mirror Glass |
| SKU | JA-PLE-4213 |
| Material | Optically worked glass |
| Reflecting surface | Silvered back with protective coating |
| Diameters | 50 mm and 75 mm |
| Focal lengths (50 mm diameter) | 50, 75, 100, 150, 200 and 300 mm |
| Focal lengths (75 mm diameter) | 50, 75, 100, 150, 200 and 300 mm |
Applications of the convex mirror in physics labs
A convex mirror always forms a virtual, erect and diminished image, so in the laboratory it is used to study that image, to find its focal length with the help of a convex lens, and to compare its behaviour with a concave mirror.
- Finding the focal length of a convex mirror using a convex lens
- Studying the virtual, erect and diminished image formed by a convex mirror
- Ray tracing of reflection from a convex surface with optical pins
- Comparing convex and concave mirrors in class 10 and class 11-12 practicals
- Demonstrating the wide field of view used in vehicle and security mirrors
Scope of supply and ordering
Each unit is one convex glass mirror of the diameter and focal length ordered. Mirror holders, optical benches and lenses are separate items. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the sizes, quantity and delivery destination. JaincoLab supplies class sets for schools, bulk orders for colleges and education projects, and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which sizes are available?
50 mm and 75 mm diameters, each in focal lengths of 50, 75, 100, 150, 200 and 300 mm.
How is the mirror made?
It is optically worked glass, silvered on the back with a protective coating.
Related products
More optics apparatus is listed in Physics Lab Equipments from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order Convex Mirror Glass, send the diameters, focal lengths, quantities and delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
