Capacitance and Permittivity Kit
Product Code : JA-PLE-7964

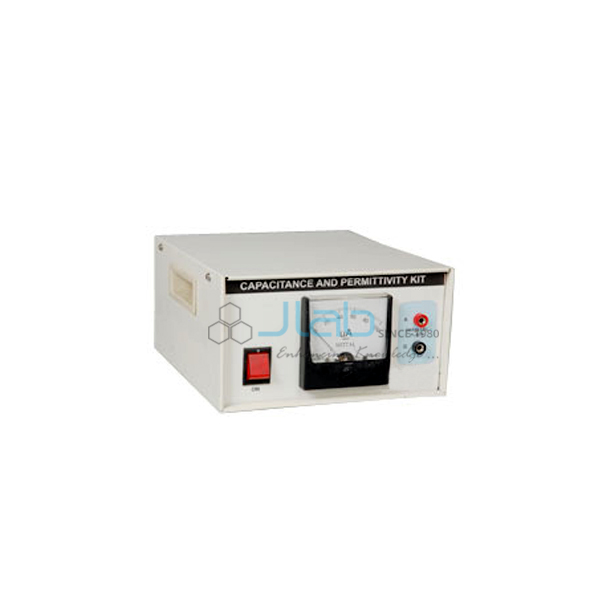

The Capacitance and Permittivity Kit (SKU JA-PLE-7964) is a self-contained capacitance meter and parallel plate capacitor set for studying how capacitance depends on plate area, plate separation and the medium between the plates. This capacitance and permittivity kit for parallel plate capacitor experiments combines a reed relay switch, an integrated circuit current amplifier and a meter in one cabinet, with 0.25 m square capacitor plates, a Perspex sheet, spacers and two capacitors for series and parallel combinations. No other measuring instrument is needed.
Specifications
The measuring unit uses a reed relay switch with its AC supply and an integrated circuit current amplifier that produces an output current proportional to capacitance, read on a 0-100 microammeter, with a sensitivity of about 0.1 nF and linearity better than 1% of full-scale deflection.
| Product | Capacitance and Permittivity Kit |
| SKU | JA-PLE-7964 |
| Measuring unit | Reed relay switch with AC supply, integrated circuit current amplifier and 0-100 microammeter, housed in a cabinet |
| Output | Current proportional to capacitance |
| Sensitivity | Changes of the order of 0.1 nF detectable |
| Linearity | Better than 1% f.s.d. |
| Calibration | None required |
| Capacitor plates | One pair, 0.25 m x 0.25 m x 4 mm |
| Dielectric and spacers | Perspex sheet; set of Perspex/polythene spacers |
| Capacitors | Two, for series and parallel combination |
| Additional instruments | None needed; completely self-contained |
Experiments with the capacitance and permittivity kit
The kit is used in electrostatics practicals to show, with direct meter readings, how capacitances add in series and in parallel and how the capacitance of a parallel plate capacitor changes with overlap area, plate separation and the dielectric between the plates.
- Series and parallel combination of capacitances using the two capacitors
- Variation of capacitance with the area of overlap of the parallel plates
- Variation of capacitance with the distance between the plates, set with the spacers
- Effect of the medium between the plates, comparing air with the Perspex sheet to estimate the permittivity of Perspex
Scope of supply and ordering
The listing covers the measuring cabinet (reed relay switch with AC supply, IC current amplifier and meter), a pair of 0.25 m x 0.25 m capacitor plates, a Perspex sheet, two capacitors and a set of Perspex/polythene spacers. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the number of kits and the delivery destination. JaincoLab supplies electricity and electrostatics kits for schools, colleges and education projects, and exports to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What can be studied with the kit?
Series and parallel combinations of capacitance, and the factors that set the capacitance of a parallel plate capacitor: area of overlap, distance between the plates and the medium.
How sensitive is the meter?
A change of the order of 0.1 nF can be detected, and linearity is better than 1% of full-scale deflection.
Does it need calibration or other instruments?
No. The kit is completely self-contained, needs no other measuring instruments and requires no calibration.
What size are the capacitor plates?
One pair of plates measuring 0.25 m x 0.25 m x 4 mm is supplied, with a Perspex sheet and Perspex/polythene spacers.
