Digital Logic Trainer TTL and Logic Trainer Board
Product Code : JA-GT-1489

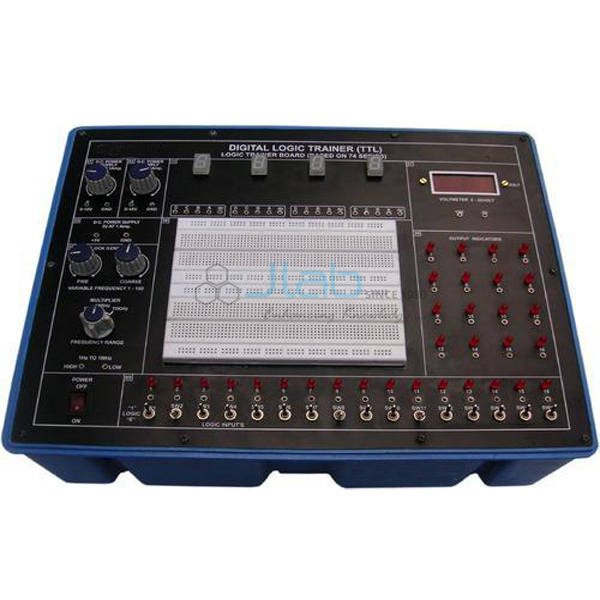

The Digital Logic Trainer TTL and Logic Trainer Board (SKU JA-GT-1489) is a digital electronics trainer with its own power supplies, clock, inputs, displays and breadboard for building and testing TTL logic circuits. It provides a fixed 5 V and a variable 0 to ±18 V supply at 1 A, a variable clock from 1 Hz to 1 MHz, sixteen logic input switches, sixteen LED output indicators, a 4-digit seven-segment display with decoder driver and a 0-20 V digital voltmeter. It is supplied by JaincoLab for electronics laboratories in schools, ITIs and colleges.
Specifications
The trainer has fixed 5 V and 0 to ±18 V supplies at 1 A with ±1% load regulation and ripple below 2 mV, a 1 Hz to 1 MHz clock in three ranges with multiplier, 16 input switches, 16 red 5 mm LEDs, a 4-digit seven-segment display, a 0-20 V DC voltmeter and a solderless spring-loaded breadboard.
| Product | Digital Logic Trainer TTL and Logic Trainer Board |
| SKU | JA-GT-1489 |
| DC outputs | Fixed 5 V and 0 to ±18 V, 1 A |
| Load regulation | ±1% of highest output voltage (no load to full load) |
| Ripple and noise | Less than 2 mV |
| Clock | 1 Hz to 1 MHz, three ranges with multiplier |
| Logic inputs | 16 high/low switches |
| Output indicators | 16 bright red 5 mm LEDs |
| Display | 4-digit seven-segment with decoder driver |
| Digital voltmeter | DC, 0-20 V |
| Breadboard | Solderless, spring-loaded |
| Operating conditions | 0 to 40°C, 95% RH at 40°C |
Experiments with the digital logic trainer
Students wire TTL gates, flip-flops and counters on the breadboard, drive them from the switches and clock and watch the results on the LEDs and seven-segment display.
- Verification of logic gate truth tables
- Flip-flops, counters and shift registers
- Clocked sequential circuits from 1 Hz to 1 MHz
- Seven-segment decoding and display
- Digital electronics practicals in ITI, diploma and B.Sc courses
Scope of supply and ordering
This listing covers one digital logic trainer board with power supplies, clock, switches, LEDs, display, voltmeter and breadboard. Accessories, spares and quantities are confirmed on the quotation. Logic ICs, patch cords and manual are confirmed on the quotation.
Minimum order quantity, packing and lead time for the Digital Logic Trainer TTL and Logic Trainer Board are stated on the quotation once the quantity and delivery destination are known. JaincoLab supplies single laboratory orders, bulk requirements for engineering colleges and polytechnics, and tender lots.
Frequently asked questions
What power supplies are built in?
A fixed 5 V supply and a variable 0 to ±18 V supply, each rated 1 A.
What clock range does it offer?
1 Hz to 1 MHz in three ranges with a multiplier.
How are outputs displayed?
On 16 red LEDs and a 4-digit seven-segment display.
