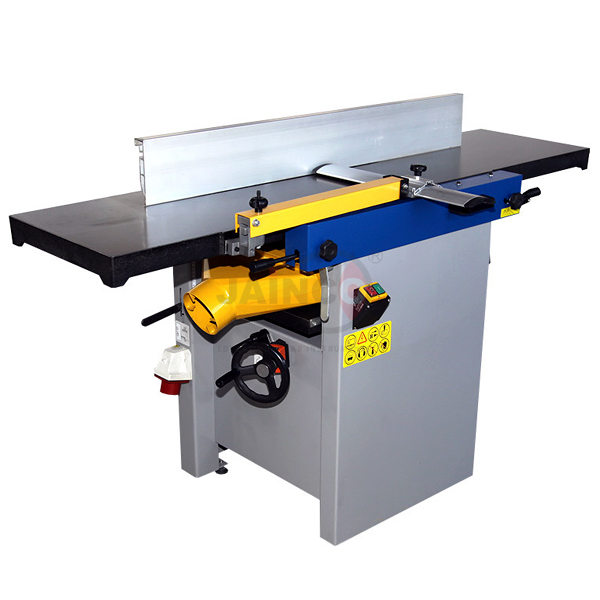

Combination Surface Planer and Thicknesser
Product Code : JA-WWPT-8701
The combination surface planer and thicknesser flattens and then thicknesses timber on one machine in joinery workshops. A motor listed as 4 kW / 3 hp drives a 70 mm, three-knife cutter block at 5500 rpm; it planes up to 408 mm wide, thicknesses 3 to 225 mm stock at a 7 m/min feed, and has a 1660 x 410 mm planer table and 600 x 408 mm thicknessing table (SKU JA-WWPT-8701).
Specifications
Listed specification:
| Product | Combination Surface Planer and Thicknesser |
| SKU | JA-WWPT-8701 |
| Motor | 4 kW / 3 hp (as listed) |
| Maximum blade size | 254 mm |
| Maximum planing width | 408 mm |
| Thickness height | 3 to 225 mm |
| Maximum chip removal | Thicknesser 4.5 mm; planer 3 mm |
| Feed speed | 7 m/min |
| Cutter block | 70 mm diameter, 5500 rpm, 3 knives |
| Out-feed roller | Rubber, 32 mm diameter |
| Tables | Planer 1660 x 410 mm; thicknessing 600 x 408 mm |
| Fence tilt | 45 to 90° |
| Dust outlet | 120 mm |
| Machine dimensions | 1660 x 870 x 1000 mm |
| Packing size | 1670 x 690 x 980 mm |
Scope of supply and ordering
The listing covers one combination surface planer and thicknesser, supplied by JaincoLab. Pack quantities, packing method and lead time are fixed on the quotation.
Frequently asked questions
What thickness range can it handle?
Stock from 3 to 225 mm thick, at a feed speed of 7 m/min.
How much can be removed in one pass?
Up to 4.5 mm on the thicknesser and 3 mm on the planer.
How wide can it plane?
Up to 408 mm.
Related products
Browse the full wood workshop machine range for related items.
Request a quote
Use the contact page to ask for a quotation on the Combination Surface Planer and Thicknesser, giving the SKU JA-WWPT-8701 and the quantity. Tender and project enquiries can be sent through the tenders page.
