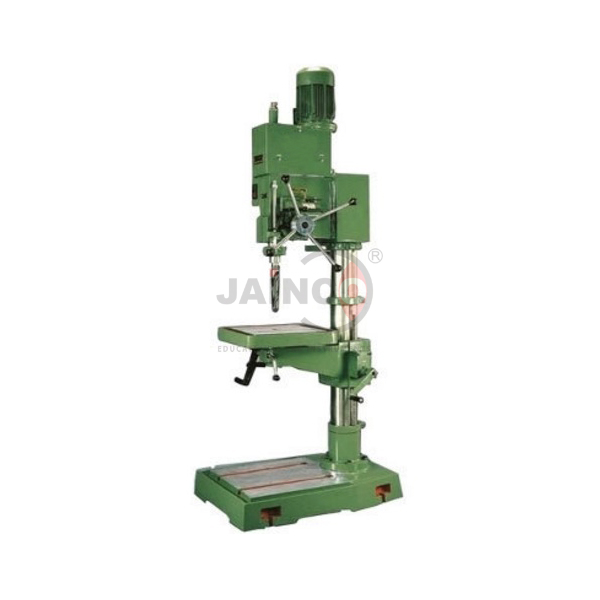

Drilling Machine
Product Code : JA-WWPT-8707
The drilling machine is a column-type drill for metal and woodwork training with a 38 mm drilling capacity, eight spindle speeds in either direction and both manual and power feed. The main spindle is EN steel with six slots, the spindle sleeve runs in a honed bore on six ball and roller bearings, and spindle travel is 220 mm (SKU JA-WWPT-8707).
Specifications
Listed specification:
| Product | Drilling Machine |
| SKU | JA-WWPT-8707 |
| Drilling capacity | 38 mm |
| Motor power | 1.5 to 2.5 HP |
| Spindle speeds | 8, in either direction |
| Spindle travel | 220 mm |
| Feed | Manual and power feed, rough and smooth |
| Main spindle | EN steel, 6 slots; sleeve guided in a honed bore on 6 ball and roller bearings |
| Construction material | MS, CI |
| Other features | Proportioned column; window in the top cover for gear change; mild steel quill spacer |
Scope of supply and ordering
The listing covers one drilling machine, supplied by JaincoLab; the motor rating is confirmed on the quotation. The quotation states the packing, the lead time and the number of units.
Frequently asked questions
What is the drilling capacity?
38 mm.
How many spindle speeds are there?
Eight, available in either direction.
Is power feed available?
Yes, both manual and power feed are provided.
Related products
Related items are grouped in the JaincoLab wood workshop machine range.
Request a quote
To order the Drilling Machine, send the SKU JA-WWPT-8707, the quantity and the delivery destination through the JaincoLab contact page. Institutions and contractors buying under a tender can also reach us via the tenders page.
