Dovetail Machine
Product Code : JA-WWPT-8714

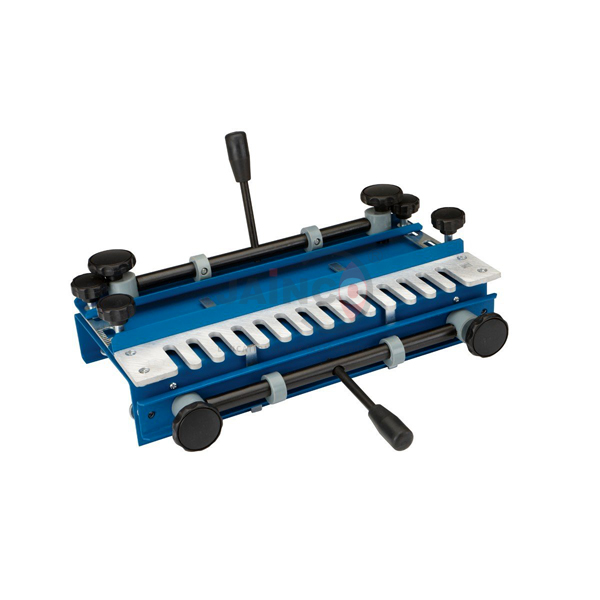

The dovetail machine is a half-blind dovetail jig used with a router: its cam-action clamping locks two boards so that tails and pins are cut in one pass. It takes stock up to 1-1/4 inch thick, uses a 1/2-inch comb and includes a 1/2-inch template (SKU JA-WWPT-8714).
Specifications
Listed data:
| Product | Dovetail Machine |
| SKU | JA-WWPT-8714 |
| Joint type | Half-blind dovetails only |
| Clamping | Cam-action, locks two boards |
| Comb size | 1/2 inch; 1/2-inch template included |
| Maximum stock thickness | 1-1/4 inch |
| Front width range | 5-13/16 to 10-7/8 inch |
| Top width range | 5-1/2 to 12 inch |
| Allowances | Eccentric fixing 5/16 inch; stop pin 1 inch |
| Dimensions | 10-1/4 inch H x 17 inch W x 15-3/4 inch L |
Scope of supply and ordering
The listing covers one dovetail jig with its 1/2-inch template, supplied by JaincoLab; the router is not included. Packing, lead time and the quantity per order are agreed on the quotation.
Frequently asked questions
Which dovetail joint does it cut?
Half-blind dovetails; tails and pins are cut with one pass of the router.
What stock thickness can it take?
Up to 1-1/4 inch thick.
