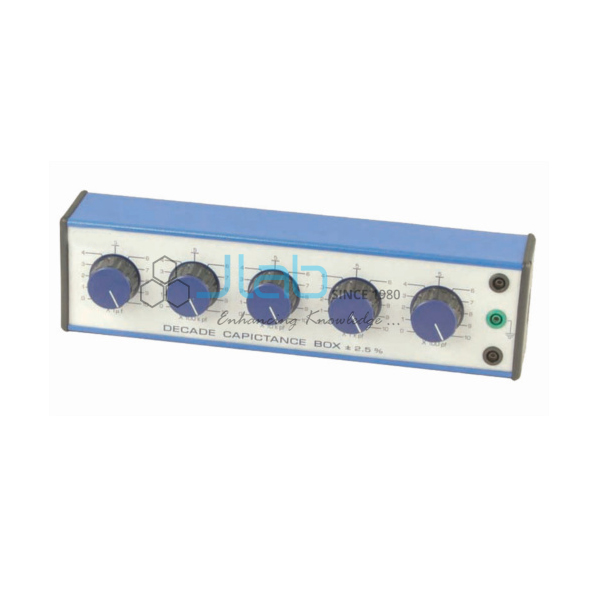

Capacity Box Dial Type
Product Code : JA-PLE-4179
The Capacity Box Dial Type (SKU JA-PLE-4179) is a switched standard of capacitance for electrical measurements in the physics laboratory. High-grade paper condensers of accurate value are housed in a wrinkled-finish metal case and selected with rotary dials of ten steps each. This dial type capacity box is offered with one, two, three or four dials covering 0.001 to 1 microfarad, for college, B.Sc and senior-school electricity practicals.
Specifications
Each dial selects ten steps of one decade, so a single-dial box gives 10 steps, a two-dial box 20, a three-dial box 30 and a four-dial box 40 steps, with sub-divisions of 0.001, 0.01, 0.1 or 1 microfarad (mfd) per dial.
| Product | Capacity Box Dial Type |
| SKU | JA-PLE-4179 |
| Capacitors | High-grade paper condensers of accurate value |
| Case | Wrinkled-finish metal case |
| Steps per dial | Ten |
| Single dial box | 10 steps; sub-division 0.001, 0.01, 0.1 or 1 mfd |
| Two dial box | 20 steps; 0.001 and 0.01, 0.01 and 0.1, or 0.1 and 1 mfd |
| Three dial box | 30 steps; 0.001, 0.01 and 0.1, or 0.01, 0.1 and 1 mfd |
| Four dial box | 40 steps; 0.001, 0.01, 0.1 and 1 mfd |
Uses of the dial type capacity box
The dial type capacity box is used wherever a known, adjustable capacitance is needed in a circuit: as the standard arm of a capacitance bridge, as the timing capacitor in charging and discharging experiments, and for comparing unknown capacitors.
- Standard capacitance in bridge methods such as the De Sauty bridge for comparing capacitances
- Charging and discharging of a capacitor through a resistor and study of RC time constant
- Series and parallel combination of capacitors
- Tuning and filter experiments in AC and electronics practicals
- B.Sc physics and engineering physics electricity and magnetism laboratories
Scope of supply and ordering
The listing covers the dial type capacity box in single, two, three and four dial versions with the sub-divisions shown above. Bridges, oscillators, headphones and galvanometers are separate items. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the number of boxes, the dial versions chosen and the delivery destination. JaincoLab supplies college laboratories, bulk orders for education projects and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What capacitance range does the capacity box cover?
The dials cover sub-divisions of 0.001, 0.01, 0.1 and 1 microfarad (mfd), with ten steps on each dial.
How many dials are available?
Single, two, three and four dial boxes are listed, giving 10, 20, 30 and 40 steps respectively.
What type of capacitors are used?
High-grade paper condensers of accurate value, housed in a wrinkled-finish metal case.
Related products
Browse the Physics Lab Equipments category or the wider catalogue of JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Capacity Box Dial Type, state the number of dials, the sub-divisions, the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
