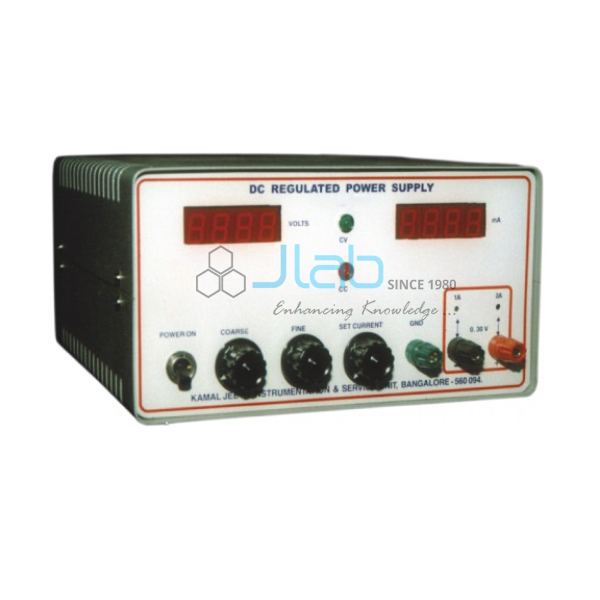

DC Regulated Power Supply Single Output
Product Code : JA-PLE-4226
The DC Regulated Power Supply Single Output (SKU JA-PLE-4226) is a variable bench supply offered as model PR 230, rated 0-30 V at 2 A, and model PR 231, rated 0-30 V at 5 A. Voltage and current are continuously variable within the rated values, with CC/CV indication and overload and short-circuit protection. This single output DC regulated power supply is a standard source for physics, electronics and engineering practicals.
Specifications
Two ratings are listed, PR 230 (0-30 V / 2 A) and PR 231 (0-30 V / 5 A), each with continuously variable voltage and current, constant-current / constant-voltage indication, overload and short-circuit protection and full-scale continuous operation.
| Product | DC Regulated Power Supply Single Output |
| SKU | JA-PLE-4226 |
| Models | PR 230: 0-30 V / 2 A; PR 231: 0-30 V / 5 A |
| Output | Single, variable DC |
| Adjustment | Voltage and current continuously variable within the nominal value |
| Indication | CC / CV |
| Protection | Overload and short-circuit protection |
| Duty | Allows full-scale operation for long periods |
Applications of the single output DC regulated power supply
A variable, current-limited DC supply is the basic power source for most electrical practicals, letting students set the exact voltage an experiment needs while the current limit and protection guard both the circuit and the supply.
- DC circuit, Ohm's law and resistance practicals
- Powering student electronics circuits and trainers
- Supplying coils, solenoids and electromagnets within the current rating
- Electrolysis and charging experiments at controlled voltage and current
- Physics, electronics and engineering laboratories in colleges, polytechnics and TVET institutes
Scope of supply and ordering
The listing covers the single output DC regulated power supply in the PR 230 (2 A) and PR 231 (5 A) ratings. The model required, mains supply and leads are confirmed on the quotation, together with accessories, spares and quantities.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the model, quantity and delivery destination. JaincoLab supplies single laboratories, class sets for colleges and training institutes, and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
Which models are available?
PR 230 rated 0-30 V at 2 A and PR 231 rated 0-30 V at 5 A.
Are voltage and current adjustable?
Yes. Both are continuously variable within the rated values, with CC / CV indication.
Is the supply protected?
Yes. It has overload and short-circuit protection and is rated for full-scale operation over long periods.
