Young Modulus Apparatus Searles Pattern
Product Code : JA-PLE-4207

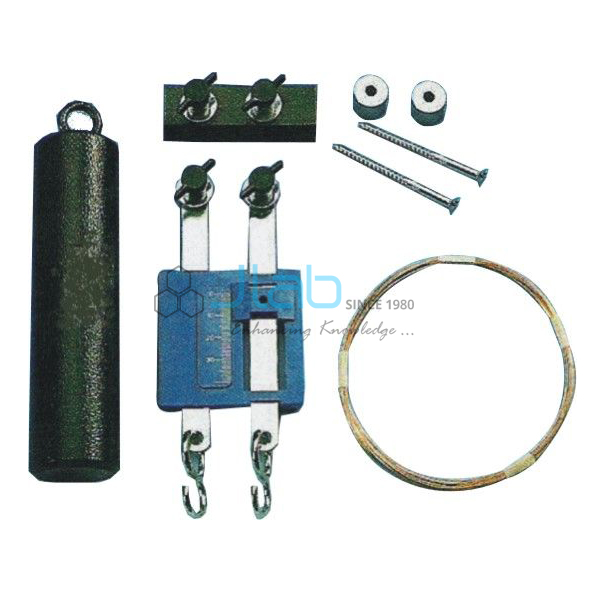

The Young Modulus Apparatus Searles Pattern (SKU JA-PLE-4207) is used to determine the Young's modulus of the material of a wire by Searle's method. Two iron frames hang from a test wire and a reference wire, and the extension of the loaded wire is read with a micrometer screw and a sensitive spirit level. This Searle's apparatus for Young's modulus is a standard item for class 11-12 and B.Sc elasticity practicals.
Specifications
The apparatus has two iron frames connected by a link and fitted with self-centring chucks, a micrometer screw reading to 0.01 mm with a 0-10 mm main scale on one frame, and a spirit level pivoted on one frame and resting on the micrometer point on the other.
| Product | Young Modulus Apparatus Searles Pattern |
| SKU | JA-PLE-4207 |
| Frames | Two iron frames connected by a link |
| Wire clamping | Self-centring chucks on the frames |
| Micrometer screw | Accurately cut, reading to 0.01 mm |
| Main scale | 0-10 mm, fitted in one frame |
| Level | Sensitive spirit level, pivoted at one end to one frame, other end resting on the micrometer screw point |
Applications of Searle's apparatus for Young's modulus
As loads are added to the test wire its frame moves down relative to the reference frame, tilting the spirit level; turning the micrometer until the bubble is central again gives the extension to 0.01 mm, from which Young's modulus is calculated.
- Determining Young's modulus of a wire by Searle's method
- Plotting load against extension and checking Hooke's law within the elastic limit
- Comparing the elastic behaviour of wires of different materials
- Class 11-12 physics practicals under CBSE and state boards
- B.Sc physics and engineering physics properties-of-matter laboratories
Scope of supply and ordering
The listing covers the Searle's pattern Young's modulus apparatus: two linked iron frames with self-centring chucks, the micrometer screw and main scale, and the spirit level. Test wires, weight hangers and slotted weights are not in the listed items. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the number of sets and the delivery destination. JaincoLab supplies school and college laboratories, bulk education-project orders and export consignments to buyers in Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What is the least count of the micrometer?
The micrometer screw reads to 0.01 mm, with a main scale of 0-10 mm.
How is the extension of the wire detected?
A sensitive spirit level pivoted on one frame rests on the micrometer point on the other frame; the micrometer is turned to re-level it after each load.
Are wires and weights included?
Test wires, hangers and slotted weights are not in the listed items and can be quoted separately.
Related products
Find more properties-of-matter apparatus in Physics Lab Equipments from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Young Modulus Apparatus Searles Pattern, send the number of sets and delivery destination through the JaincoLab contact page or email [email protected]. Institutions and contractors buying under a tender can also reach us via the tenders page.
