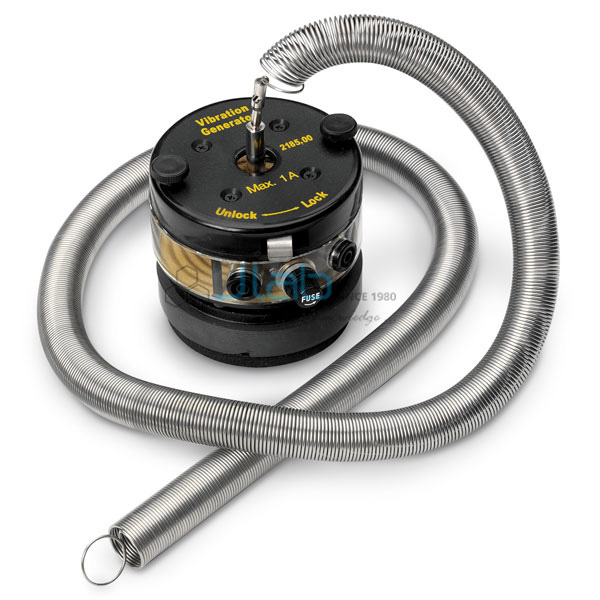

Vibration Generator
Product Code : JA-SW-7693
The Vibration Generator (SKU JA-SW-7693) produces mechanical oscillations when it is fed by an oscillator or AF amplifier, turning an electrical signal into up-and-down motion of up to 4 mm amplitude. It covers 30 to 10,000 Hz with a 3 ohm coil and 5 W electrical input, measures 100 × 100 × 90 mm and weighs 1 kg, and accessories are included. JaincoLab supplies this vibration generator for standing wave and resonance experiments, to be used with a signal generator.
Specifications
The Vibration Generator has a frequency range of 30 to 10,000 Hz, a maximum amplitude output of 4 mm, a coil impedance of 3 ohm and an electrical input of 5 W; it measures 100 × 100 × 90 mm, weighs 1 kg and is supplied with accessories.
| Product | Vibration Generator |
| SKU | JA-SW-7693 |
| Function | Gives mechanical oscillations when fed by an oscillator or AF amplifier |
| Frequency range | 30 to 10,000 Hz |
| Amplitude output | 4 mm maximum |
| Coil impedance | 3 ohm |
| Electrical input | 5 W |
| Dimensions | 100 × 100 × 90 mm |
| Weight | 1 kg |
| Accessories | Included |
| Drive | Use with a signal generator |
Standing wave experiments with the vibration generator
Driven by a signal generator, the vibration generator shakes one end of a stretched string, elastic cord or spring so that students can form standing waves, count loops and relate frequency, tension and wavelength, as in Melde’s experiment, and it can also drive plates and rods to show resonance at particular frequencies.
- Standing waves on strings and elastic cords (Melde-type experiments)
- Relating frequency, tension and wavelength
- Standing waves on springs
- Resonance of plates, rods and other vibrating systems
Scope of supply and ordering
The listing covers the Vibration Generator with its included accessories. A signal generator is needed to drive it and is listed separately. Leads, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the quantity and the delivery destination. JaincoLab supplies vibration generators for school and college laboratories singly or in sets, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What frequency range does the vibration generator cover?
30 to 10,000 Hz.
What drives it?
It gives mechanical oscillations when fed by an oscillator or AF amplifier; a signal generator should be used with it.
What amplitude can it produce?
An amplitude output of 4 mm maximum.
What are its electrical ratings?
A coil impedance of 3 ohm and an electrical input of 5 W.
Related products
Other wave and oscillation apparatus is in Sound and Waves from JaincoLab, a physics lab equipment manufacturer in India.
Request a quote
To order the Vibration Generator, send the quantity and the delivery destination through the JaincoLab contact page or email [email protected]. Tender and project enquiries can be sent through the tenders page.
