Set of Plates Microwave Accessories
Product Code : JA-SW-7610

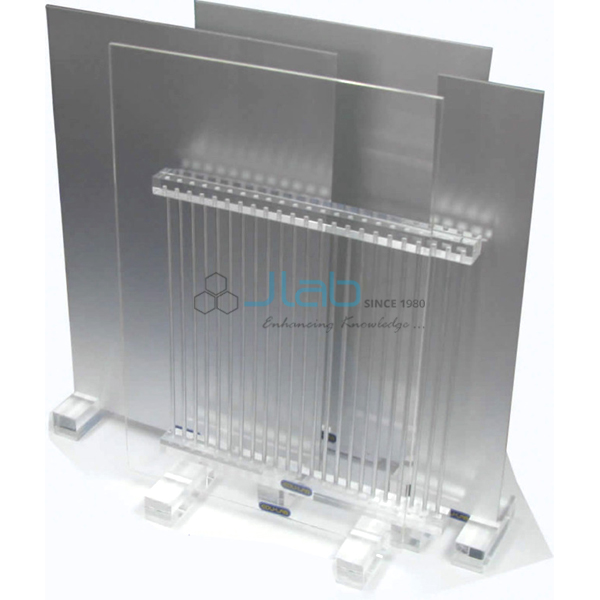

The Set of Plates (SKU JA-SW-7610) is a microwave optics accessory set of five plates, each on supporting feet: two aluminium plates of about 200 × 280 mm, a polarization grille of about 200 × 200 mm, a perspex plate of about 200 × 280 mm and a narrow aluminium plate of about 60 × 280 mm. With a microwave transmitter and receiver, the plates are used for reflection, slit diffraction and interference, polarisation and transmission experiments. JaincoLab supplies this set for college and senior-school physics laboratories.
Specifications
The set comprises five pieces, all with supporting feet: 2 aluminium plates 200 × 280 mm, 1 polarization grille 200 × 200 mm, 1 perspex plate 200 × 280 mm and 1 aluminium plate 60 × 280 mm, with all sizes approximate.
| Product | Set of Plates Microwave Accessories |
| SKU | JA-SW-7610 |
| Aluminium plates | 2, approx. 200 × 280 mm |
| Polarization grille | 1, approx. 200 × 200 mm |
| Perspex plate | 1, approx. 200 × 280 mm |
| Narrow aluminium plate | 1, approx. 60 × 280 mm |
| Mounting | All pieces with supporting feet |
Microwave experiments with the set of plates
In microwave optics practicals the aluminium plates act as reflectors and, set side by side with the narrow plate, form single and double slits for diffraction and interference; the grille shows the polarisation of the transmitted wave, and the perspex plate shows partial reflection and transmission through a dielectric.
- Reflection of microwaves from a metal plate
- Single-slit diffraction and double-slit interference using the aluminium plates
- Polarisation of microwaves with the polarization grille
- Partial reflection and transmission through the perspex plate
- College and senior-school electromagnetic wave practicals
Scope of supply and ordering
The set includes the five plates listed above, each with supporting feet. The microwave transmitter and receiver, rotating protractor and other accessories are separate listings. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation according to the number of sets and the delivery destination. JaincoLab supplies microwave accessory sets to colleges, schools and education programmes, and exports to Africa, the Middle East and South and South-East Asia.
Frequently asked questions
What does the Set of Plates contain?
Two aluminium plates of about 200 × 280 mm, one polarization grille of about 200 × 200 mm, one perspex plate of about 200 × 280 mm and one aluminium plate of about 60 × 280 mm, all with supporting feet.
What is the polarization grille used for?
It shows that the transmitted microwaves are polarised: the received signal changes as the grille is turned in the beam.
How are slits formed for interference experiments?
The aluminium plates can be stood side by side in the beam, with the narrow 60 mm plate between the two larger plates to form a double slit.
