Vacuum Oven
Product Code : JA-O-2306

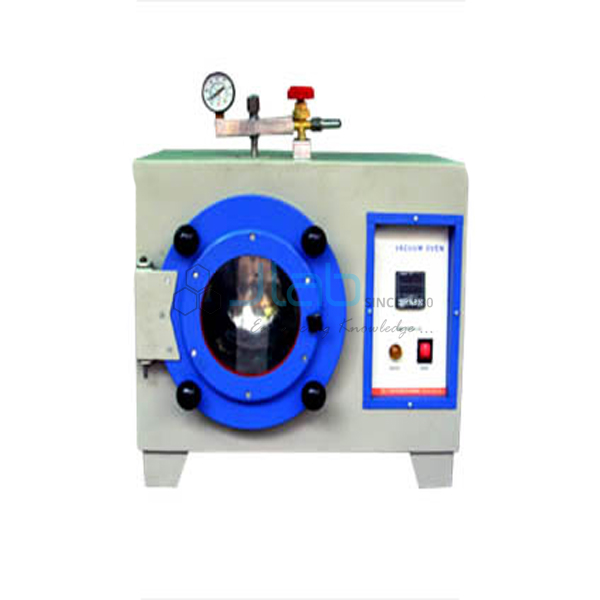

The Vacuum Oven (SKU JA-O-2306) dries and heats samples under reduced pressure, which lowers the boiling point of water and solvents so heat-sensitive materials can be dried at moderate temperatures. This laboratory vacuum oven has a round stainless steel inner chamber in a double-walled, glass-wool insulated body built to withstand 760 mm of vacuum, and controls temperature from 50 to 150 °C within ±3 °C. JaincoLab manufactures it for pharmaceutical, chemical and research laboratories; the vacuum pump is ordered separately.
Specifications
The oven has a round stainless steel inner chamber, mild steel outer body with glass wool insulation, a temperature range of 50 to 150 °C (±3 °C) and a body rated for 760 mm vacuum, and works on 220 V AC, 50 Hz.
| Product | Vacuum Oven |
| SKU | JA-O-2306 |
| Construction | Double walled, glass wool insulation |
| Inner chamber | Round, stainless steel sheet |
| Outer body | Mild steel sheet |
| Temperature range | 50 °C to 150 °C, ±3 °C |
| Vacuum | Body capable of withstanding 760 mm vacuum |
| Controls | Temperature regulator, indicator lamp, on-off switch, cord and plug |
| Power | 220 V AC, 50 Hz, single phase |
| Chamber sizes (diameter x depth) | 250 x 250 mm, 250 x 300 mm, 300 x 300 mm |
| Vacuum pump | Not included |
Applications of the laboratory vacuum oven
Drying under vacuum removes moisture and solvents at lower temperatures, protecting samples that would degrade or oxidise in hot air.
- Drying heat-sensitive pharmaceutical and biological samples
- Solvent removal from chemical samples and residues
- Moisture determination under reduced pressure
- Research and quality-control laboratories in pharmacy and chemistry
Scope of supply and ordering
The listing covers the vacuum oven with temperature regulator, indicator lamp, switch and cord in the chamber size ordered; it is supplied without a vacuum pump. A pump and connecting tubing can be quoted separately. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the chamber size and number of ovens and the delivery destination. Single ovens and bulk institutional and tender quantities are supplied.
Frequently asked questions
Is a vacuum pump included?
No. The oven is supplied without a vacuum pump; one can be quoted separately.
What temperature range does it cover?
50 to 150 °C within ±3 °C.
Which chamber sizes are available?
Round chambers of 250 x 250, 250 x 300 and 300 x 300 mm (diameter x depth).
Related products
This model is listed in the JaincoLab laboratory ovens range.
Request a quote
To order the Vacuum Oven, send the chamber size, pump needed, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-O-2306. Buying under a laboratory tender? Use our tenders page.
