Drying Cabinet/Oven
Product Code : JA-O-6346

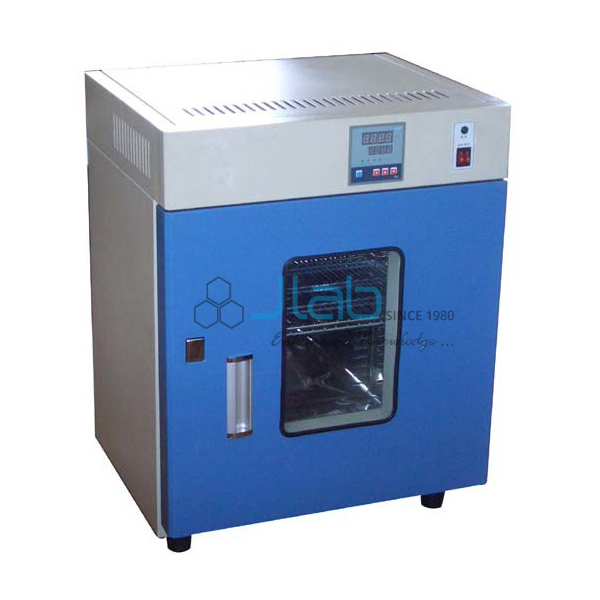

The Drying Cabinet/Oven (SKU JA-O-6346) is a double-walled drying cabinet for laboratories and hospitals, with a stainless steel interior, glass wool insulation and stainless steel tubular heaters at the bottom. This drying cabinet oven uses a motorised blower that draws air in from the bottom to keep the chamber temperature uniform, and a microprocessor controller-cum-indicator with a Pt100 sensor. JaincoLab manufactures it in sizes from about 30 to 600 litres.
Specifications
The cabinet has a stainless steel interior, a stainless steel or powder-coated mild steel exterior, glass wool insulation, bottom-mounted stainless steel tubular heaters, a motorised blower and a microprocessor controller-cum-indicator with Pt100 sensor.
| Product | Drying Cabinet/Oven |
| SKU | JA-O-6346 |
| Construction | Double walled, glass wool insulation |
| Interior | Stainless steel |
| Exterior | Stainless steel or powder-coated mild steel |
| Heating | Stainless steel tubular heaters mounted at the bottom |
| Air circulation | Motorised blower, air in from the bottom |
| Controller | Microprocessor based controller-cum-indicator, Pt100 sensor |
| Standard fittings | SS enclosure, motor, PID controller, power cord, tube heater, rubber gasket, SS tray, door lock |
| Options | PID controller with printer interface; PID controller with PC interface |
| Inner sizes and capacity | 300 x 300 x 300 mm, approx. 30 L; 400 x 400 x 400 mm, approx. 65 L; 500 x 500 x 500 mm, approx. 125 L; 600 x 600 x 600 mm, approx. 220 L; 600 x 600 x 900 mm, approx. 325 L; approx. 600 L size also listed |
Applications of the drying cabinet oven
Blower-circulated warm air dries glassware, instruments and samples evenly across the stainless steel trays.
- Drying washed glassware in chemistry, biology and pharmacy laboratories
- Drying equipment and materials in hospital departments
- Sample drying and moisture work in quality-control laboratories
- Research laboratories needing a stainless steel drying chamber
Scope of supply and ordering
The listing covers the drying cabinet in the size ordered with its standard fittings: stainless steel enclosure, motor, PID controller, power cord, tube heater, rubber gasket, stainless steel tray and door lock. Printer or PC interface controllers are options confirmed on the quotation. Accessories, spares and quantities are confirmed on the quotation.
Minimum order quantity, lead time and packing are confirmed on each quotation for the size, options and number of units and the delivery destination. Single cabinets and bulk institutional and tender quantities are supplied.
Frequently asked questions
Which sizes are available?
Inner sizes from 300 x 300 x 300 mm (about 30 litres) to 600 x 600 x 900 mm (about 325 litres), plus a size of about 600 litres.
How is the temperature kept uniform?
A motorised blower circulates air from the bottom of the chamber, heated by stainless steel tubular heaters.
Can it record data?
PID controllers with printer or PC interface are available as options.
Related products
This model is listed in the JaincoLab laboratory ovens range.
Request a quote
To order the Drying Cabinet/Oven, send the size, exterior finish, options, quantity and delivery destination through the JaincoLab contact page or email [email protected], quoting SKU JA-O-6346.
